Crane for Sale in Uzbekistan: 16 Ton Crane Installed in Steel Plants

16 Jul, 2024

Introduction

Steel plants require efficient and reliable material handling equipment to transport heavy loads such as steel plates. One of the most commonly used lifting solutions in steel plants is the Electric Overhead Travel (EOT) crane. In this case, we will discuss the design and sale of a 16 ton single girder EOT crane with a double speed hoist to a steel plant in Uzbekistan.

16 ton EOT crane for sale to Uzbekistan steel plant

Client's Background

The client is a leading steel manufacturing company in Uzbekistan, specializing in the production of high-quality steel products for various industrial applications. With a focus on efficiency and safety, the client seeks a reliable material handling solution to streamline their steel plate transportation process within the plant.

Client's Requirements

The client has specified the following key requirements for the EOT crane:
  1. Capacity: 16 tons
  2. Double speed hoist: To ensure precise and efficient lifting and lowering of steel plates
  3. Safety features: Compliance with international safety standards and regulations
  4. Durability: The overhead crane should be able to withstand the harsh operating conditions in a steel plant environment

EOT Crane Solution from DQCRANES

As a leading manufacturer of overhead cranes and hoists, DQCRANES has developed a tailored design solution to meet the client's specific requirements. The design incorporates advanced technology, high-quality components, and a focus on safety and reliability.

Uzbekistan 16 ton overhead crane design drawing

Crane type / LDA single girder overhead crane
Hoist type / MD1 double speed wire rope hoist
Lifting capacity ton 16
Span  m 12
Lifting height m 8
Hoist lifting speed m/min 0.35/3.5
Hoist traveling speed m/min 20
Crane traveling speed m/min 20
Rail type / P22
Power supply / 3 Phase, AC 380V, 50Hz
Control mode / Pendent control & Remote control

Design:
  • Single girder: The main bridge structure consists of a single, high-strength box-shaped steel beam. This makes it lighter and more cost-effective compared to double-girder cranes.
  • End trucks: These motorized units support the bridge on each end and allow it to travel along the runways.
  • Trolley: This assembly travels horizontally on the bottom flange of the main beam (underhung design) and carries the hoist unit.
  • Double speed wire rope hoist: This is the lifting mechanism. It features a wire rope wound around a drum and a motor for spooling. The "double-speed" aspect means it has two lifting speeds, typically a high speed for empty lifts and a slower, more precise speed for handling loads.
  • Runways: Steel rails mounted along the length of the building to support the traveling bridge.
  • Electrical control system: Manages power distribution and operation of the bridge, trolley, and hoist.
Uzbekistan 16 ton overhead hoist crane production

Features:

The 16 ton single girder overhead crane with an MD series double speed wire rope hoist is designed to provide efficient and precise lifting of steel plates within the steel plant. The key design features of the double speed hoist crane include:
  1. Single Girder Configuration: The overhead hoist crane is equipped with a single girder design, which offers optimal hook approach dimensions and maximum lifting height, making it suitable for the client's steel plate handling needs.
  2. Double Speed Hoist: The inclusion of a double speed wire rope hoist allows for both high-speed and low-speed lifting operations, providing flexibility and control during the handling of steel plates. This feature enhances productivity and ensures safe and accurate load positioning.
  3. Customized Span: The 12 m span of the single girder crane is customized to match the specific layout and operational requirements of the client's steel plant, ensuring seamless integration with existing infrastructure.
  4. Safety Features: The overhead bridge crane has a range of safety features, including overload protection, emergency stop functions, and limit switches to prevent over-travel of the crane motions. Additionally, the crane complies with Uzbekistan safety standards to ensure a secure working environment for plant personnel.
  5. Durability and Reliability: The 16 ton crane components are constructed from high-quality materials to withstand the demanding conditions of a steel plant environment, including exposure to high temperatures, dust, and heavy loads. The design also incorporates advanced protective coatings to enhance corrosion resistance and prolong the service life of the crane.
Other Features:
  • Compact design: The single girder design allows for a lower overall height, potentially saving space in the steel plant.
  • Lightweight: Easier to install and puts less stress on the building structure.
  • Easy maintenance: Simple design facilitates access to components for inspection and service.
  • Control options: Can be operated with a hand controller, pendant control, or even a cabin for operator comfort.

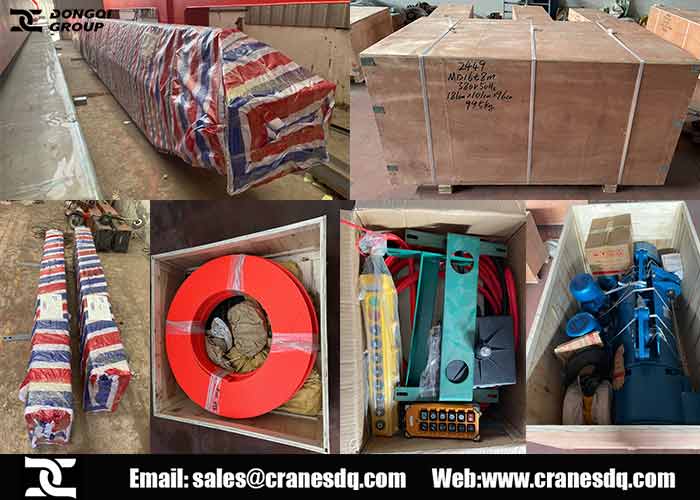

Uzbekistan 16 ton eot crane and accessories

Benefits

  • Increased Productivity: The double speed hoist enables efficient handling of steel plates, reducing cycle times and improving overall productivity within the plant.
  • Precise Load Control: The dual-speed functionality of the hoist allows for precise positioning of heavy loads, minimizing the risk of damage to the steel plates and enhancing operational safety.
  • Customized Design: The tailored design of the 16 ton crane ensures seamless integration with the client's existing infrastructure, optimizing space utilization and workflow efficiency.
  • Enhanced Safety: The incorporation of advanced safety features provides a secure working environment for plant personnel, reducing the risk of accidents and ensuring compliance with industry regulations.

types of overhead cranes for Sale in Steel Plants

At DQCRANES, in addition to the single girder EOT crane available, we also offer other types of overhead cranes for sale to meet various material handling needs in steel plants. These include:
  1. Double Girder eot cranes: Designed for handling heavier loads and offering greater lifting heights, double girder EOT cranes are suitable for bulk material handling and large-scale steel plate transportation within steel plants.
  2. Magnet Cranes: Equipped with electromagnetic lifting systems, magnet cranes are specifically designed for handling ferrous materials such as steel plates. The use of magnets provides efficient and secure lifting without the need for slings or hooks.
  3. grab cranes: Ideal for handling irregularly shaped or loose materials, grab cranes feature specialized grab attachments for securely gripping and transporting steel plates and other bulk materials within the plant.
