Project Overview

DQCRANES designed and installed a 1-ton pillar jib crane for a manufacturing workshop specializing in packaging machinery assembly. The electric jib crane enhanced workflow efficiency by enabling safe, precise handling of components across a 4.5-meter reach, with 360-degree rotation and optimized lifting speeds.

Customer Background

The client operates a high-volume workshop producing custom packaging machinery. Their assembly line required a solution to lift and position heavy components (up to 1 ton) such as motors, conveyor belts, and structural frames. Manual handling caused bottlenecks, safety risks, and worker fatigue, necessitating a robust workshop lifting system.

Challenges and Requirements

• Limited Workspace: The assembly line had space constraints, requiring a lifting solution that wouldn't obstruct workflow.
• Precise Positioning: The assembly of packaging machinery demanded precise positioning of components to ensure accuracy and quality.
• Increased Productivity: The customer aimed to reduce assembly time and increase productivity.
• Worker Safety: They wanted to minimize the risk of worker injuries associated with manual lifting.
• Capacity: 1-ton lifting capacity for medium/heavy parts.
• Coverage: 4.5m arm length to span multiple workstations.
• Maneuverability: 360° rotation to access the entire assembly area.

1 Ton Jib Crane Design - DQCRANES Solution

DQCRANES proposed and supplied a pillar-mounted 1 ton workshop jib crane tailored to the customer's specific needs. The key specifications of the slewing jib crane were:

1. Lifting Capacity: 1 ton
2. Arm Length: 4.5 meters (hot-rolled steel beam for durability).
3. Lifting Height: 3 meters (sufficient for workstation vertical clearance).
4. Rotation: 360° smooth rotation via slewing bearing (tangential speed: 0.8 m/min at arm end).

Hoist Specifications:

• Lifting Speed: 6.6 m/min (electric chain hoist for controlled vertical movement).
• Traveling Speed: 11 m/min (along the arm for rapid horizontal positioning).
• Safety Features: Overload protection, emergency stop, limit switches, and corrosion-resistant coating.

Design Features

• Pillar Mounting: The pillar-mounted crane design provided a freestanding solution that could be installed without requiring support from the building structure, optimizing space utilization.
• 360-Degree Rotation: The 360-degree rotation capability allowed for maximum flexibility in handling materials across the assembly line.
• Electric Chain Hoist: An electric chain hoist was included for efficient and precise lifting and lowering of components. The specified lifting and traveling speeds ensured smooth and controlled movement.
• Customization: DQCRANES customized the jib crane's arm length and lifting height to match the specific requirements of the assembly line.
• Safety Features: The jib crane for sale UAE was equipped with safety features such as overload protection, limit switches, and emergency stop buttons to ensure safe operation.

Installation & Implementation

• Site Assessment: DQCRANES engineers evaluated floor strength, workflow patterns, and obstacle clearance to optimize pillar placement.
• Pillar Foundation: A reinforced concrete base ensured stability without disrupting existing layouts.
• Detailed Drawings: Detailed technical drawings and specifications were provided to the customer for approval.

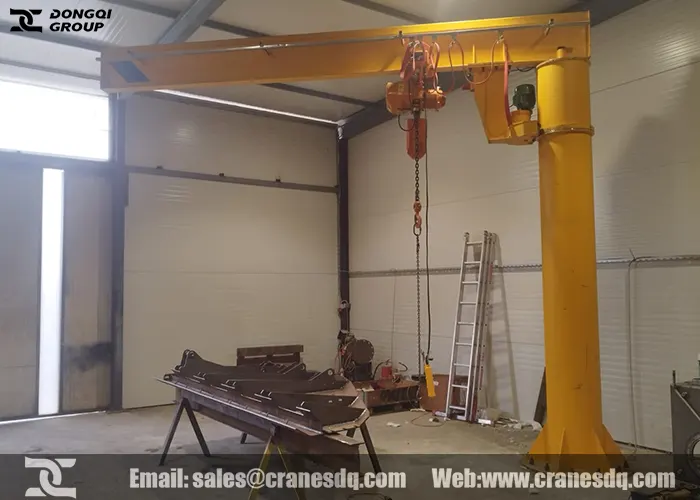

• Integration: The workshop crane was positioned to serve 4 assembly stations, with rotation paths cleared for unobstructed movement.
• Professional Installation: DQCRANES' experienced technicians handled the installation of the pillar jib crane, ensuring proper alignment and functionality.
• Training: Operators received instruction on load dynamics, speed controls, and safety protocols.

Results & Benefits

• Productivity Boost: Component transfer time reduced by 40%, accelerating assembly line throughput.
• Safety Compliance: Zero handling-related incidents reported post-installation.
• Ergonomic Improvement: Eliminated manual lifting, reducing worker fatigue.
• Versatility: The jib crane’s 360° rotation and 4.5m reach enabled multi-station service without repositioning.
• ROI: Payback achieved in 8 months via reduced labor costs and downtime.

Customer Feedback

“The DQCRANES 1 ton jib crane transformed our workflow. Its precision and reliability have made it indispensable to our daily operations.”— Workshop Manager

Types of Workshop Jib Cranes for Sale in UAE

Jib cranes are versatile lifting solutions ideal for workshops, assembly lines, and manufacturing facilities. DQCRANES offers types of jib cranes for sale in UAE, along with their features, applications, and suitability:

Pillar Mounted Jib Cranes

• Structure: A vertical steel pillar anchored to the floor supports a horizontal rotating arm.
• Load Capacity: Typically 0.5–16 tons.
• Rotation: 180°–360°, depending on design.
• Installation: Requires a reinforced concrete foundation.

Suit For:

• Workshops need 360° coverage around a central workstation.
• Lifting heavy components (e.g., machinery parts, motors).
• Areas with limited ceiling space (no overhead support required).

Advantages:

• Robust and durable.
• Minimal floor footprint.
• Ideal for repetitive lifting tasks.

wall mounted jib cranes

• Structure: A horizontal arm mounted to a wall or column, with a pivoting base.
• Load Capacity: Up to 15 tons.
• Rotation: 180°–200° (limited by wall obstruction).
• Installation: Requires a load-bearing wall or structural column.

Suit For:

• Workshops with limited floor space.
• Tasks along walls or near workbenches.
• Light-to-medium loads (e.g., tools, small assemblies).

Advantages:

• Space-efficient.
• Cost-effective for localized lifting.

Freestanding Jib Cranes

• Structure: A self-supporting mast with a horizontal arm, anchored to a heavy base plate.
• Load Capacity: 1–16 tons (depending on design).
• Rotation: 360°.
• Installation: Requires a large concrete foundation for stability.

Suit For:

• Heavy-duty applications (e.g., foundries, large machinery workshops).
• Outdoor or indoor environments need full rotation.

Advantages:

• No reliance on walls or ceilings.
• High load capacity.

Articulating Jib Cranes

• Structure: Features two rotating arms (boom and jib) for enhanced maneuverability.
• Load Capacity: 0.25–2 tons.
• Rotation: 360° (arm) + 180° (boom).
• Installation: Can be wall-mounted, floor-mounted, or ceiling-suspended.

Suit For:

• Complex lifting paths (e.g., around obstacles or tight corners).
• Precision tasks (e.g., positioning delicate components).

Advantages:

• Extreme flexibility.
• Ideal for multi-directional workflows.

portable jib cranes

• Structure: A portable jib arm mounted on a wheeled base.
• Load Capacity: 0.25–2 tons.
• Rotation: 180°–360°.
• Installation: No fixed installation; powered by manual movement or electric drives.

Suit For:

• Workshops requiring flexibility (e.g., multiple workstations).
• Maintenance tasks or temporary lifting needs.

Advantages:

• Highly portable.
• Quick deployment.

How To Choose a Workshop Jib Crane

1. Workspace Layout: Floor space, ceiling height, and obstacle locations.
2. Load Requirements: Lifting capacity, Arm length, Lifting height, and frequency.
3. Hoist Types: Electric chain hoist, Electric rope hoist, or Manual chain block.
4. Rotation Needs: 180° or 270°, or Full 360° rotation.
5. Mobility: Fixed vs. portable solutions.
6. Power Supply: Manual or electric operation.

Consult with DQCRANES

By aligning your operational needs with DQCRANES’ engineering expertise, you can select a jib crane that optimizes productivity, safety, and cost-efficiency. For complex requirements, request a custom quote or on-site consultation to ensure the crane integrates seamlessly into your workspace.
