Crane grab bucket introduction

Crane grab bucket is a kind of tool used with cranes for material handling, which is mainly designed for handling of powder and fine bulk materials such as chemicals, fertilizer, grain, coal, coke, iron ore, sand, particle construction materials and mashed rock, etc.

Crane grab buckets are widely applied in ports, steel plants, power stations ships and garbage treatment plant with various cranes, such as, tower cranes, ship cranes, ship unloaders traveling cranes, etc.

Types of crane grab buckets

Based on different standards, the crane grab buckets can be classified into different types. And the general classifications of crane grab buckets are as follow:

1. On grab bucket shape

Based on grab bucket shapes, crane grab buckets can be classified into clamshell grab buckets, orange peel grab, and cactus grab bucket.

Clamshell grabClamshell grab

  • Clamshell grab bucket is the most common one which is used in silty, clayey and sandy materials.
  • The orange peel grab bucket is frequently applied to remove the large irregular pieces of rock and other irregular pieces. With 8 jaws, the orange peel grab usually do not close very well.
  • Cactus grab bucket is used to handle the coarse and fine materials at same time. With 3 or 4 jaws that close very well in the closed position and form a proper bucket.

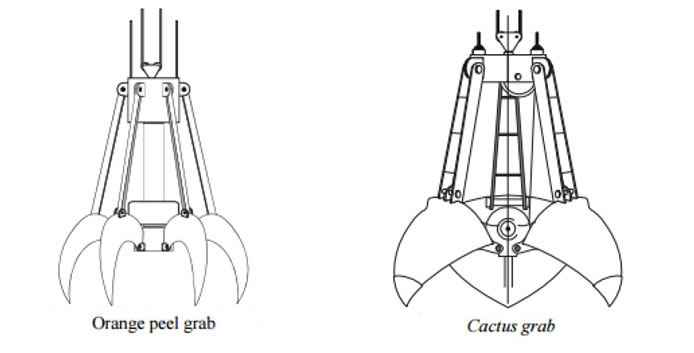

Peel grab & Cactus grab

2. On bulk density of materials

According to bulk density of materials, crane grab buckets can be grouped in light, medium, heavy, and extra heavy crane grab basket.

  1. Light crane grab bucket is used to handle materials with the bulk density of γ< 1.2t / m³ , such as dry grain, little bricks, lime, fly ash, aluminum oxide, sodium carbonate, dry slag , etc.
  2. Medium crane grab bucket is used to handle materials with the bulk density of γ=1.2t/ m³~2.0t/ m³, such as, gypsum, gravel, pebbles, cement, large blocks, etc.
  3. Heavy crane grab bucket is used to handle materials with the bulk density ofγ= 2.0t / m³ ~2.6 t / m³, such as, hard rock, small and medium-sized ore and scrap steel, etc.
  4. Extra heavy crane grab bucket is used to handle materials with the bulk density ofγ>2.6t / m³,such as, heavy ore, scrap steel, etc. .

3. On mechanical principals

  1. Ropes grab. The crane grab buckets can be classified into single rope grab bucket, double rope grab bucket, and four rope grab buckets.
  2. Power self-supplied grab. The power self-supplied grab is usually referred to the one with electric motor, which is not suitable for underwater work.
  3. Non power self-supplied grab. The non-power self-supplied grab is mainly referred to electric hydraulic grab and pneumatic type grab.

Crane buckets offering of Dongqi Crane

As a professional crane manufacturer and supplier, Dongqi Hoist and Crane can provide you various types of crane buckets with various sizes and capacities to be used in overhead crane and gantry crane to meet your requirements. The followings crane buckets are shown for your reference.

Rope crane bucket

Crane bucket is a kind of hoist lifting spreader which can crane bucket varieties of bulk materials, divided into four rope type, double rope type, single rope type, electric type, discs type, shear type, hydraulic type and log type, etc.Rope grab bucket

Wire rope crane bucket: Single rope crane bucket, Double rope crane bucket, Four rope crane bucket

  • Single rope crane bucket:Single rope crane bucket apply to the crane only have one lifting reel, freely opened and closed during loading and unloading of bulk materials, the whole crane is easy to use and disassembly, suitable for underwater operations crane bucket and stack. Single rope crane bucket unable to open in the air, hand and remote control type can be realized to open in the air.
  • Double rope crane bucket: Suitable for double hoisting mechanism crane, apply to crane bucket all kinds of loose debris. Two hoisting mechanisms, one is responsible for crane bucket lift, another is for crane bucket opening and closing.
  • Four rope crane bucket ;With good strength, light weight, reasonable structure, material crane bucket finer and smaller. Blade plate using special wear-resistant plate, enhancing the degree of impact and friction, multi-layer sealing process using on pulley, dust and water can be operated underwater, blade plate seam gap is small which can reach 0.3mm, can maintain a cleaner workplace, the overall structure is not easy to deform, four rope crane bucket can also be designed to double rope crane bucket.

Clamshell grab

Crane bucket: clamshell grab

Clamshell grab consist of two integral buckets, orange peel grab include three or more movable jaw. Regarding to clamshell grab, it is mainly matched with bridge crane to grab different kinds of loose deposits for loading, unloading, shifting, charging and other operation.

Owing to clamshell grab have different volume; the rate of material is diverse. We usually divide the clamshell grab into four categories: light duty, middle duty, heave duty and extra-heavy duty.

Clamshell grab advantages:

  • First class quality with competitive price
  • Compact design
  • Reasonable structure, favorable performance
  • Control the load easily and position the load exactly
  • Smooth starting and stopping
  • Superior safety and reliability

Orange peel crane bucket

Orange peel crane bucket

Orange peel crane bucket

Four rope orange peel grab: Mainly for handling of irregular shape materials such as scrap, refuse, gravel etc., suitable for steel mills refuse plants, port and railway.

Orange peel crane bucket main parameters:

  • Capacity of orange peel grab : 4-30M3
  • Dead weight of orange peel grab: 5.5-20T
  • Cargo density of orange peel grab: 0.8-2.5T/M3
  • Dia of rope:28MM
  • Dia of pulley: 520MM
  • Structure material:Q345B
  • Pulley of orange peel grab:Q345B hot rolled
  • Axes of orange peel grab: 42CrMo
  • Bushing of orange peel grab: ZGMn13

Motor driving crane bucket

Motor driving crane bucket

Motor driving crane bucket

The electric motor driving crane bucket got lots of types, our company equips the crane grab with standard electric block as switching mechanism, The motor crane grab can be considered that the closed drum is moved to the grab, Due to the closed its huge grabbing force, It is used to grab hard materials as ores, etc.

Main parameters of motor driving crane bucket

  • Volumes of crane bucket: 0.3--6 M3
  • Type of crane bucket: light, middle, heavy
  • The proportion of materials <2
  • Capturing the materials: 0.45--6 t
  • Percentage of pulley: 4--5
  • The diameter of steel wires 7.7--16 mm
  • The diameter of pulley: 250--400 mm
  • Self-weight of crane grab: 0.95--5.6 t
  • Tons of the match hoist crane 2--15 t
  • Total height of crane grab: 1850--3700 mm
  • Crane bucket can be designed as customer demand.

 Types of crane grabs and crane buckets

 Crane bucket: Electric stainless steel crane bucket Log crane , Scissor crane bucket

Electric stainless steel crane bucket

Designed specifically for the brewing industry, crane bucket help brewing koji, sauce, and sauce making, etc., reduce the labor intensity of the workers, is conducive to the clean and sanitation of production floor.

Log crane bucket

It is suitable for lumber yard, large wood products factory, paper mills, ports and other industries, for loading and unloading, stacking. The structure is divided into four types: single rope, double rope, four rope and electric type. It can be also designed and manufactured according to your needs.

Scissor crane bucket

Scissor crane bucket relies on wire rope retractable to close and open the crane bucket jaw. its closing moments increased gradually during closing process, does not leak and clean material when crawling materials, mostly used for ship unloader.

Electric hydraulic crane bucket

Design and manufacturing according to FEM / DIN standard, import the main hydraulic components. Big Grasping force, high degree of automation, it is ideal handling tools for large pieces of ore, pig iron, scrap, waste, iron, straw, slag and other materials. It is mainly used in iron and steel, mining, forest farm, coal mining, harbor dock, scrap steel acquisition, garbage disposal, bioelectrogenesis and other industries.
Depending on different industries, using occasion and the crane bucket materials, electro-hydraulic crane bucket divided into discs type and two discs type. Orange Discs type is divided into circular and rectangular, its claw including closed, semi-open and open type.
