10 Ton Overhead Crane, Custom 10 ton overhead crane delivered to Brazil

10 ton overhead crane for heavy duty material handling. Custom 10 ton overhead crane is delivered to Brazil. Why not get your custom overhead crane? Contact us to get you custom overhead crane with the lowest cost now.

10 ton overhead crane, a kind of heavy duty cranes, is widely used for lifting materials in warehouse, factory, store yard and port. Hoist crane 10 ton ovehread crane  is one girder cranes with big lifting capacity. Dongqi Group, a famous lifting crane equipment supplier, ranks top in the crane industry because of creative technologies

Main parameters of 10 ton overhead crane

• Overhead Crane Loading Capacity: 10 ton
• Overhead Crane Lifting Height: 3~35m
• Overhead Crane Span: 7.5~35m
• Overhead Crane Working Class:A3-A5
• Overhead Crane Working Temperature:-20~40℃

Why does Dongqi apply PLC in 10 ton overhead crane?

PLC is the abbreviation of programmable logic controller. Its basic structure are composed of power, CPU, memory, input/output interface circuit, function module and communication module. PLC can change the form of relay-contacts control, and can make it adjustable for electric motors’ speed of every file, acceleration time and braking time according to practical conditions. PLC functions include calculating, controlling, programming, communicating, diagnosing, processing. Because PLC has various advantages and can make heavy duty cranes more safety and convenient, Dongqi Enterprise apply PLC in crane system. Its advantages are following.

• 1. Convenient use, simple program
• 2. Strong function, highly cost-effective
• 3. Complete hardware, convenient use for customers, strong adaptability
• 4. High reliability, strong anti-interference capability
• 5. Little work for system’s design, installation and test
• 6. Little work for maintenance and convenient maintenance.

10 ton crane projects and case studies

With CE and ISO certificates, high quality, pleasant 10 ton crane services, and cost-effective 10 ton crane price, the products of Dongqi Crane are exported and populated around the world. The hoist and crane of Dongqi Crane has be supplied to various countries, such as, Malaysia, Pakistan, Philippines, Singapore, UAE United Arab Emirates, Bangladesh, Sri Lanka, Vietnam, Saudi Arabia, Oman, Egypt, Nigeria, Australia, Brazil, Canada, South Africa, Thailand, United Kingdom, and United Sates, and other countries.

In order to thank all the customers and offer lifting solution for more people, Dongqi offers the following hoist and cranes at very competitive price and free consultation will be offered. Please feel to contact us to leave your overhead crane inquiry and to buy 10 ton overhead crane, 10 ton gantry crane, 10 ton jib crane and other Types of cranes and hoists.

Crane for sale Bangladesh: 10 ton double girder overhead crane installation in Bangladesh

10 Ton Double Girder Overhead Crane Installation Process

When the first day we arrived the Chittagong, Bangladesh, We discussed the installation plan of the 10 ton double girder overhead crane with them as below:
Link the main girder-----Fix the maintenance platform---Fix one piece end carriages---Fix the two main girder----Fix the second end carriages-----Fix the end carriages & main girder well----Fix the lifting trolley----Connect the electrics----load testing/commission

Overhead crane Bosnia: 10 ton Double girder overhead crane Bosnia | overhead crane supplier Bosnia

10 ton double girder overhead crane with 11.7m span and 9m lifting height is delivered to Bosnia.

10 Ton Overhead Crane, Custom 10 ton overhead crane delivered to Brazil- Dongqi Hoist and Crane

10 Ton Overhead Crane, Custom 10 ton overhead crane delivered to Brazil- Dongqi Hoist and Crane

10 ton overhead crane for mail machine project Ethiopia

10 ton overhead crane for mail machine project Ethiopia- Dongqi overhead crane project

10 ton single girder overhead crane installed in Dhaka, Bangladesh

10 ton single girder overhead crane installed in Dhaka, Bangladesh

10 ton overhead crane for Senegal

4 ton and 10 ton overhead crane for Senegal

Hoist crane: 10 ton single girder electric hoist crane for sale Bangladesh

Hoist crane: 10 ton single girder electric hoist crane for sale Bangladesh

Workshop crane: 10 ton workshop overhead crane for concrete workshop| Dongqi overhead crane

Workshop crane: 10 ton workshop overhead crane for concrete workshop| Dongqi overhead crane

Hoist winch for sale: 40/10 ton hoist trolley, double speed |Dongqi Hoist winch project

Hoist winch for sale: 40/10 ton hoist trolley, double speed |Dongqi Hoist winch project

Electric hoist Egypt: 10 ton wire rope hoist for sale Egypt

Electric hoist Egypt: 10 ton wire rope hoist for sale Egypt

10 ton overhead crane hook for sale | Dongqi crane hook parts

10 ton overhead crane hook for sale | Dongqi crane hook parts

electric chain hoist for sale: 10 ton hook chain hoist, 10 ton trolley chain hoist, CE 10 ton electric chain hoist

Electric chain hoist for sale: 10 ton hook chain hoist, 10 ton trolley chain hoist, CE 10 ton electric chain hoist

10 ton overhead crane for Brazil customer

10 ton overhead crane is for heavy duty material handling. Custom 10 ton overhead crane is delivered to Brazil. Why not get your custom overhead crane? Contact us to get you custom overhead crane with the lowest cost now.

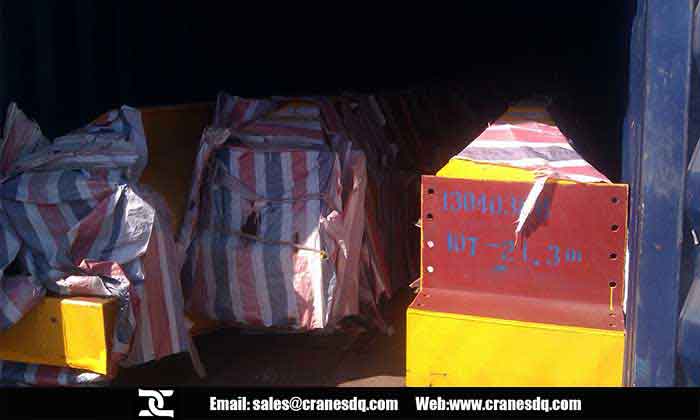

10 ton overhead crane ready delivered to Brazil

Lifting capacity offering of Dongqi Hoist and Crane

• 1 ton overhead crane
• 2 ton overhead crane
• 3 ton overhead crane
• 5 ton overhead crane
• 6 ton overhead crane
• 7 ton overhead crane
• 7.5 ton overhead crane
• 8 ton overhead crane
• 10 ton overhead crane
• 12 ton overhead crane
• 15 ton overhead crane
• 20 ton overhead crane
• 25 ton overhead crane
• 30 ton overhead crane
• 35 ton overhead crane
• 40 ton overhead crane
• 50 ton overhead crane
• 60 ton overhead crane
• 70 ton overhead crane
• 75 ton overhead crane
• 80 ton overhead crane
• 90 ton overhead crane
• 100 ton overhead crane
•  Get your custom overhead crane

 More information on overhead crane, gantry crane, jib crane, electric hoist is our Dongqi Hoist and Crane Product Center.

Overhead Crane FAQ: What are general overhead crane problems and how to solve them?

Question 1: Why does Dongqi Crane use PLC on overhead crane?

Answer: PLC is the abbreviation of programmable logic controller. Its basic structure are composed of power, CPU, memory, input/output interface circuit, function module and communication module. PLC can change the form of relay-contacts control, and can make it adjustable for electric motors' speed of every file, acceleration time and braking time according to practical conditions. PLC functions include calculating, controlling, programming, communicating, diagnosing, processing. Because PLC has various advantages and can make heavy duty overhead cranes more safety and convenient, Dongqi Enterprise apply PLC in overhead crane system. Its advantages are following. 1. Convenient use, simple program 2. Strong function, highly cost-effective 3. Complete hardware, convenient use for customers, strong adaptability 4. High reliability, strong anti-interference capability 5. Little work for system's design, installation and test 6. Little work for maintenance and convenient maintenance.

Question 2: What's the system of hoist overhead crane?

Answer: Electric hoist overhead crane mainly includes lifting mechanism, travelling mechanism (trolley travelling mechanism and overhead crane travelling mechanism) and rotating mechanism. First is lifting mechanism, it refers to electric hoist. It is composed of driving device (electric motor), braking device (brake), transmission device (reducer) and fetching rotating device (hook, grab, magnetic disc, and wire rope, chain, trolley, drum, sprocket and rope-guiding device). Second is horizontal travelling mechanism, it is trolley travelling mechanism. Travelling trolley is composed of electric motor, braking device (brake), transmission device (reducer) and trolley wheel device. Third is vertical travelling mechanism, it is overhead crane travelling mechanism. This mechanism includes driving mechanism (electric motor), braking device (brake), and transmission device (reducer) and overhead crane wheel device. The advantage of electric hoist overhead crane is that it adopts three-in-one driving device. It combines driving device (electric motor), braking device (brake) and transmission device (reducer) together. It is a compact and light driving device without shaft.

Question 3 : How do bridge overhead cranes supply power ?

Answer: First is through flexible cable. The power of the lifting overhead crane is supplied by AC power system. Because the work of the overhead cranes is movable, the overhead crane and the power can't be connected in fixed way. In general, the flexible cable is used to supply the power. When the overhead crane system and the trolley move on the tack, flexible cable can stretch and roll along the track. Second is through slide wire and electric brush. Three phase AC power is transported into cabin's protection box through three main slide wires and electric brush, then transported to overhead crane system's motor, electromagnet and AC control station through wire way. Third is through auxiliary slide wire and electric brush. This refers to the power supply of magnetic brake, trolley's hoisting mechanism and trolley's motor.

Question 4 : What to do when the overhead crane trolley line is out of power ?

Answer: The reason is that electric brush climbs in the conductor, the brush wears seriously, conductor joint is not smooth, single connector is used, rail joint becomes loose. The correct way is to check whether the brush wears seriously, change electric brush, adjust the connecting joint, and adopt double-brush connector.

Question 5: What to do when the guiding rail is deformation, the collector doesn't work?

Answer: The main reason is the temperature is too high, the distance between lifting racks is too long or loose. It is useful to adopt anti-heat plate partially, add sun shield outdoors, increase the number of trolley line lifting racks, correct the conductor and screw down the screws.

Question6 : What to do when the overhead crane trolley line shakes seriously?

Answer: The reason is that fork can't absorb the transmission error, guiding-rail has poor straightness, and lifting rack is loose. The right way is to modify tractor, adjust the straightness of guiding-rail, and tighten the screw mounts.

Question7: What are the factors which influences overhead crane working speed?

Answer: Overhead crane working speed includes lifting speed, trolley travelling speed, overhead crane travelling speed. Working speed is influenced by many factors.

First, it is related to the weight. The overhead crane with small and medium lifting can adopt high speed to improve efficiency, the overhead crane with heavy lifting is suitable to choose low speed to reduce driving-power and improve travelling stability and safety.

Working speed is also related to working class and working requirement. The overhead crane with high class, frequent use and high efficiency can adopt fast speed, working mechanism with low class and adjusting purpose can adopt low speed. The overhead crane only used for equipment installation and maintenance can choose low speed.

According to practical needs, it can also adopt double speed (high and low speed), dead speed or adjustable speed. What's more, working speed is also related to working room. The overhead crane with long travelling distance, high lifting height is suitable for high speed. The overhead crane with short travelling distance is not suitable for high speed. With development of industry, the overhead crane with much transporting work mostly adopts high speed.

The overhead crane used for installation and maintenance adopts adjustable speed. For some overhead cranes with special functions, such as the overhead crane for quench, should has fast-down device, for overhead crane with high lifting height, it should improve lifting speed, adopt low speed for heavy material, high speed for no-load, or high down-speed to increase efficiency.

Question8: What to do when the brake can't stop the braking-wheel?

Answer: The reasons are as following: the leverage hinge is stuck, braking-wheel and friction plate have oil pollution, electromagnetic core doesn't have enough travelling distance, braking-wheel and friction wheel are wearied seriously, main spring is loose and damaged, locking-nut and tie rod are loose. Make lubrication and exclude stuck fault, clean the oil pollution, adjust the brake, change the friction plate, change the main spring and locking-nut, tight the locking-nut, check the impeller driving mechanism.

Question9: What to do when the brake is too hot, the friction plate wears fast.

Answer: The braking-shoe is loose, it doesn't break off the braking-wheel totally, and causes friction. The gap between two braking-shoe and braking-wheel is not even, or the gap is too narrow. The assistant-spring of short distance brake damages or bends, the braking-wheel surface is very tough. What to do is to adjust the gap, change or maintain the assistant-spring, processes the braking-wheel surface. The reducer has uneven tapping and the machine cover vibrates when the reducer and gears mesh. Just change the gears.

Question10: Why overhead crane system need buffers?

Answer: Three kinds of buffers are used widely, spring buffer, rubber buffer and hydraulic buffer. Spring buffer is reliable and convenient to maintain. Rubber buffer has simple structure. Hydraulic buffer can absorb large hitting energy and has no rebound effect. When limiting stopper of travelling extreme position or brake is in trouble, due to the inertia, the overhead crane system moving in the end or the trolley on the main girder, will hit against the stopper set in the position. But overhead crane buffer can absorb the travelling energy of overhead crane system or trolley and reduce impulsion. Buffers should be set between the bridge overhead cranestravelling on the same track, or between the double trolleys on the same girder.

Question11: What is the anti-collision device on overhead cranes?

Answer: It mainly includes laser type, ultrasonic type, infrared type, electromagnetic type, all use the principle that light or radio wave travels, reflects and the distance can be measured. When two overhead cranes travels to pointed position, the overhead crane mechanism rings alarm bell and gives the stop command at the same time.

Question12: How does anti-deflection device protect overhead cranes?

It includes wire-rope type, cam type, chain wheel type and skew indicator and other automatic adjustable devices. When the bridge frame deflects to some degree, it can give signal to the operator and adjust itself automatically. When the overhead crane frame deflects seriously, it can cut the power automatically, stop the travelling mechanism and protect the safety.

Question13: What is the function of safety hook of overhead crane?

Answer: Safe hook is an important part of bridge overhead crane. What are functions and types of safe hook?

Safety hook is mainly used for single girder overhead crane. Lifting material at one side of main girder, the material has a tilting torque against trolley, anti-tilting torque from vertical gauge wheel or horizontal gauge wheel can keep the trolley balance. But this kind of way can't ensure the safety under the condition of cyclone, outside impact, wheel broken, maintenance and repair. Thus this overhead crane should be installed with safe hook. According to trolley and wheel, safe hook has different structures.

Question14: How to inspect the safe hook of overhead crane?

Answer: The inspection of the overhead crane safe hook is necessary. When the trolley travels along the main girder, there is no stuck between safe hook and rail or main girder web. Web has no weariness. The gap between safe hook and rail should meet the design requirement. Bolt is tight and on the right location, weld is seal, safe hook has no damage, such as abnormal deformed. Function check is the basic method, just through visual inspection and test operation.

Question15: how to lubricate the large and heavy overhead crane?

Answer: Lubrication is necessary for large overhead crane. Reasons to lubricate your overhead crane It can control friction, reduce weariness, down overhead crane temperature, avoid rust and form seal. These functions rely on each other and influence each other. If the friction can't be controlled, the weariness can/t be reduced, this will lead much friction heat and items high temperature, thus to damage the friction surface lubrication and lubricating material. How to lubricate your overhead crane?

 ome parts should be lubricated regularly, such as shafts, holes and friction surface with relative move. Due to different working condition, the lubricating points are different. For various kinds of overhead cranes and different lubricating parts, every lubrication should meet the standards and requirement of instructions. It is good for overhead crane to make regular lubrication and check. Lubricating with qualified oil can ensure the overhead crane work normally and avoid early weariness. Bad oil can lead mechanical accident, even damages equipment, influences safe producing. Lubrication plays an important role in overhead crane's maintenance. The lubricating oil can influence the effect directly.
