5 ton, 10 ton, 20 ton workshop overhead crane for Steel pipe workshop

24 Dec, 2018

Steel workshop crane

For steel industries, the proper crane and hoists are necessary for the efficient material handling in the steel workshops. As one of the specialized workshop cranes manufacturer and supplier, Dongqi Hoist and Crane is able to provide the custom workshop overhead crane for your workshops for ladle, steel pipe, coil, bar, etc.

5 ton, 10 ton, 20 ton workshop overhead crane for Steel pipe workshop Bangladesh

With rich experienced for steel workshop single girder overhead crane manufacturing and supplying, Dongqi crane have provided workshop overhead cranes and hoists for steel industries in Bangladesh. For the recommendations, the valuable customs came and sought custom workshop overhead crane for their workshop

Background of the Bangladesh customer

A well-known contract company in Bangladesh, the client has which has contracted more than 300 engineering projects, such as, pipe plant project, galvanizing plant project etc. Besides, it has several successful cooperation with Bangladesh government, which makes them more and more influential.

Steel pipe making workshop of Bangladesh client Steel pipe making workshop of Bangladesh client

Workshop overhead crane requirements

The workshop overhead crane is needed for a new factory workshop and the drawing of which is showed as below for your reference. According the workshop drawing and the lifting requirements of the Bangladesh client, Dongqi Hoist and Crane is required to provide a workshop overhead crane solution for the material handling in the pipe manufacturing workshop.

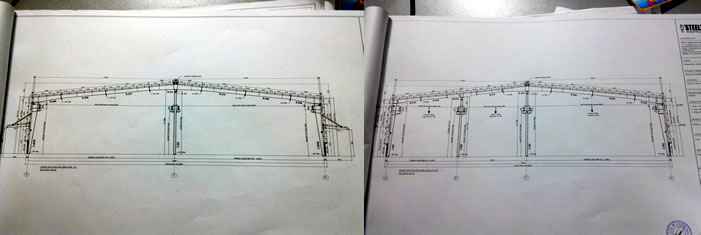

Workshop drawing of the steel pipe manufacturing workshop Bangladesh

Workshop drawing of the steel pipe manufacturing workshop Bangladesh

Workshop crane solution for Bangladesh steel pipe manufacturing workshops

Based to the practical conditions of the steel pipe production workshop and the lifting requirements, all together 9 sets of workshop cranes are needed:

Workshop cranes drawings for the Bangladesh workshop

According to the workshop drawings of the Bangladesh client, the technical drawing of the work overhead cranes are designed and presented for your reference:

Workshop overhead crane design 1:

  • Workshop overhead crane capacity: 5 ton
  • Workshop overhead crane span: 22.27m
  • Workshop crane lifting height: 9 meters.
  • Quantity of the workshop crane : 3 sets

LD5ton-22.27m(span) H9m single girder overhead crane drawing - Dongqi workshop crane design

LD5 ton-22.27m (span) H9m single girder overhead crane 3 sets

Workshop overhead crane design 2:

  • Workshop overhead crane capacity: 5ton+5ton
  • Workshop overhead crane span: 22.282m
  • Workshop crane lifting height: 9 meters.
  • Quantity of the workshop crane : 2 sets

LD5ton+5ton-22.282m(span) H9m single girder overhead crane drawing - Dongqi workshop crane design

LD5ton+5ton-22.282m (span) H9m single girder overhead crane 2sets

Workshop overhead crane design 3:
  • Workshop overhead crane capacity: 10 ton+10 ton
  • Workshop overhead crane span: 22.282m
  • Workshop crane lifting height: 9 meters.
  • Quantity of the workshop crane : 1 sets

LD10ton+10ton-22.282m(span) H9m single girder overhead crane drawing - Dongqi workshop crane design

LD10ton+10ton-22.282 m(span) H9m single girder overhead crane 1set


Workshop overhead crane design 4:

  • Workshop overhead crane capacity: 10 ton
  • Workshop overhead crane span: 10.952m
  • Workshop crane lifting height: 9 meters.
  • Quantity of the workshop crane : 1 sets

LD10ton-10.952m(span) H9m single girder overhead crane drawing - Dongqi workshop crane design

LD10 ton-10.952 m(span) H 9m single girder overhead crane 1set

Workshop overhead crane design 5:

  • Workshop overhead crane capacity: 20 ton
  • Workshop overhead crane span: 10.273m
  • Workshop crane lifting height: 9 meters.
  • Quantity of the workshop crane : 1 sets

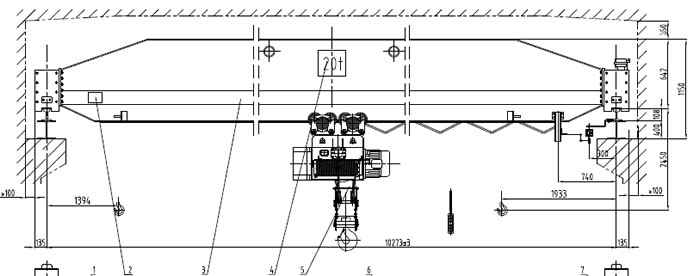

LD20ton-10.273m(span) H9m single girder overhead crane drawing - Dongqi workshop crane design

LD20ton-10.273m(span) H9m single girder overhead crane 1set

Workshop gantry crane design 6:

  • Workshop gantry crane capacity: 20 ton
  • Workshop gantry crane span: 10.5m
  • Workshop crane lifting height: 9 meters.
  • Quantity of the workshop crane : 1 sets

MDG20ton-10.5m(span) H9m single girder gantry crane drawing - Dongqi workshop crane design

MDG20ton-10.5m(span) H9m single girder gantry crane 1set

Workshop crane manufacturing, package and delivery

After the paper works is done, the workshop crane was manufactured according to plan and parts of the production pictures are presented for your reference:

Workshop overhead crane manufacturing - Dongqi workshop crane for sale

Workshop crane production for Bangladesh client - Dongqi workshop overhead crane

Workshop crane production for Bangladesh client - Dongqi workshop overhead crane

Workshop overhead crane manufacturing - Dongqi workshop crane for sale

Workshop overhead crane delivery - Dongqi workshop crane for sale

Workshop overhead crane delivery - Dongqi workshop crane for sale

crane installation and operator training

According to contract, Dongqi Hoist and Crane arranges engineers to customer site for workshop crane installation and operator training and teaches them how to maintenance.
As a customer oriented company, Dongqi Hoist and Crane will excel itself to provide superior quality lifting crane and crane services to meet the demands of customers. In order to provide you better services, Dongqi Hoist and Crane can provide overall crane services for various of industries, and our main services includes crane project design, crane installation, lifetime maintenance, crane operating training, technical support, crane parts, and crane modernization, etc.

Workshop overhead crane installation - Dongqi workshop crane for sale

Workshop overhead crane installation - Dongqi workshop crane for sale

Dongqi workshop crane wins future in Bangladesh

After installation, Dongqi Hoist and Crane team talked about future cooperation with customers Director ,he said “You have done a great job, expecting further cooperation in the future and welcome to visit us again.”
