Small & Portable hydraulic winch, Heavy hydraulic winch for sale

31 Oct, 2018

Hydraulic winches for sale. Types of hydraulic winches, i.e, small hydraulic winch, portable winch, and heavy duty hydraulic winches are available from Dongqi, your hydraulic winch manufacturers.

Hydraulic winches

With special winch design, Dongqi hydraulic winches is popular with excellent performance and compact size, which make mechanical and hydraulic parts inside the winch drum.

Different with manual winch motives by hand, Electric Winch powered by electricity, hydraulic winch is motivated by hydraulic equipment.

The power provided by hydraulic winches are produced by prime mover, which drives the hydraulic winches hydraulic pump and transports working oil into hydraulic cylinder or hydraulic motor to motivate relevant mechanism. The speed change of hydraulic winches is controlled by change the volume of the liquid that input into execute link.

Advantages of hydraulic winches

  • With large transmission ratio, continuously viable in broad range is possible for the hydraulic winches.
  • Compact structure and stable turning is an obvious feature of Dongqi hydraulic winches.

Types of Hydraulic Winches

According to application and function of hydraulic winches, Dongqi winch manufacturer provides you seven types of hydraulic winches for sale. With custom winch machine designs, Dongqi promises you high quality hydraulic winches will be at your application at very favorite winch price.

JM slow speed hydraulic winch

Dongqi JM slow speed hydraulic winch - Dongqi hydraulic winch manufacturer

Dongqi JM slow speed hydraulic winch - Dongqi hydraulic winch manufacturer

JM Hydraulic Winch

  • Loading capacity of hydraulic winch: 0.5~200 t;
  • Wire rope capacity of hydraulic winch: 20~3600 m;
  • Working speed of hydraulic winch: 5~20 m/min;(single speed and dual speed)
  • Power supply of hydraulic winch: 220-690V,50/60HZ,3Phase;

JM slow speed hydraulic winch belongs to gear reducer motivate. Hydraulic winches provides larger capacity than that of electric winches. The rated loads of hydraulic winches is ranged from 0.5 ton to 300 ton. Due to the large capacity, the hydraulic winches is applied widely in many places such as, port, construction site, bridge building project.

What’s more, the slow speed hydraulic power winch performances very well for anchoring and mooring. If your loads needs to be pulled and lifted on land and near coast, JM type slow speed hydraulic winch will be the most suitable choice.

JK fast speed hydraulic winch

Dongqi JK fast speed hydraulic winch - Dongqi hydraulic winch manufacturer

Dongqi JK fast speed hydraulic winch - Dongqi hydraulic winch manufacturer

JK Hydraulic Winch

  • Loading capacity of hydraulic winch : 0.5~60 t;
  • Wire rope capacity of hydraulic winch: 20~500 m;
  • Working speed of hydraulic winch: 20~35 m/min;(single speed and dual speed)
  • Power supply of hydraulic winch:220-690V,50/60HZ,3Phase;

JK type hydraulic winch is designed for construction site. The JK hydraulic winch can be used to handle loads from 0.5 ton to 10 tons at fast speed. As a necessary lifting trolley, the hydraulic winch can be used on the portable frame and Types of cranes. If you have need for fast speed lifting and match hydraulic winches, welcome to contact us.

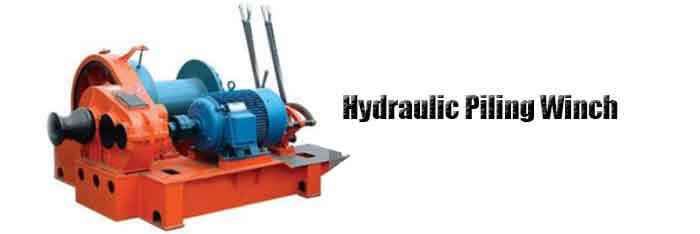

JKL fast speed hydraulic piling winch

Dongqi JKL fast speed hydraulic piling winch - Dongqi hydraulic winch manufacturer

Dongqi JKL fast speed hydraulic piling winch - Dongqi hydraulic winch manufacturer

JKL Hydraulic Winch

  • Loading capacity of hydraulic winch: 1~10t;
  • Wire rope capacity of hydraulic winch: 20~500 m;
  • Working speed of hydraulic winch: 20~36 m/min;
  • Power supply of hydraulic winch: 220-690V,50/60HZ,3Phase;

JKL hydraulic winch is designed for light duty loads handling with capacity from 2 ton to 10 ton. The JKL hydraulic winch is typically for vertical lifting at fast speed, but also can be used for horizontal pulling.

JKD hydraulic planetary winch

Dongqi JKD hydraulic planetary winch - Dongqi hydraulic winch manufacturer

Dongqi JKD hydraulic planetary winch - Dongqi hydraulic winch manufacturer

JKD Hydraulic Winch

  • Loading capacity of hydraulic winch: 0.75-2 t;
  • Wire rope capacity of hydraulic winch: 20~200 m;
  • Working speed of hydraulic winch: 20~35 m/min;
  • Power supply of hydraulic winch: 220-690V,50/60HZ,3Phase;

For modern factory, the JKD hydraulic planetary winch is designed with the features of reasonable structure and small size. Due to the small size, the JKD hydraulic planetary winch is portable and space saving, which makes it widely used in construction site, metallurgical machinery, and bridge building project, and other places. If a small size, portable and space saving hydraulic winch is needed, the JKD hydraulic winch will be the one.

JMM friction type hydraulic winch

Dongqi JMM friction hydraulic winch - Dongqi hydraulic winch manufacturer

Dongqi JMM friction hydraulic winch - Dongqi hydraulic winch manufacturer

JMM Hydraulic Winch

  • Loading capacity of hydraulic winch: 0.5~100t;
  • Wire rope capacity of hydraulic winch: 20~5000 m;
  • Working speed of hydraulic winch: 5~20 m/min;
  • Power supply of hydraulic winch: 220-690V,50/60HZ,3Phase

JMM type hydraulic winch is featured for the large rope capacity of 1000m to 5000m, widely used in huge construction projects such as, bridge building, electric engineering project, large factory and mine.

Small hydraulic winch

Dongqi JKD small hydraulic winch - Dongqi hydraulic winch manufacturer

Dongqi JKD small hydraulic winch - Dongqi hydraulic winch manufacturer

Small Hydraulic Winch

  • Loading capacity of hydraulic winch: 0.75-2 t;
  • Wire rope capacity of hydraulic winch: 20~200 m;
  • Working speed of hydraulic winch: 20~35 m/min;
  • Power supply of hydraulic winch: 220-690V,50/60HZ,3Phase;

Hydraulic Capstan Winch

Small hydraulic capstan winch - Dongqi hydraulic winch manufacturer

Small hydraulic capstan winch - Dongqi hydraulic winch manufacturer

Hydraulic Capstan Winch

  • Warping load of hydraulic winch: 50 KN
  • Warping speed of hydraulic winch: ≥18 (m/min)
  • Wire Dia of hydraulic winch: φ11 (mm)
  • Electric of hydraulic winch: 3/1.2 (kw)

Dongqi small hydraulic winches can be grouped into gypay winch and standing capstan winch. Both of small hydraulic winches have three levels of speed designs, single speed, double speed and three speed to meet your needs for slow and high speed material handling.
