Saudi Cranes: Overhead crane & gantry crane for sale in Saudi Arabia

28 May, 2018

Cranes for sale Saudi Arabia. Various overhead crane designs, overhead crane types, and overhead crane specifications are at your selection, from Dongqi Crane, your overhead crane manufacturer and supplier from China. Check overhead crane prices to get your overhead crane now.

Main overhead crane designs

Designed overhead crane project realizes your overhead crane expectation. The crane design services from Dongqi Crane is provided FOR FREE.

Designs of varous types of overhead cranes are provideded.Main types of overhead cranes are as following:

Main overhead crane specifications

Standard overhead cranes: Lifting capacity: 5 ton-550ton,  Span: 10.5m-31.5m, Lifting height: 1m-30m, Working duty is medium (A5, A6). Also supply non-standard products according to your requirements.
Note:

  • Lifting Capacity: 5ton, 10ton, 16/3.2ton, 20/5ton, 32/5ton, 50/10ton, 75/20ton, 100/20ton, 125/32ton, 150/30ton, 160/32ton, 200/50ton, 250/50ton, 300/75ton, 350/80ton, 400/80ton, 450/100ton, 500/100ton, 550/100T
  • Span: 10.5M, 13.5M, 16.5M, 19.5M, 22.5M, 25.5M, 28.5M, 31.5M,
  • Working Duty: A5(Used in working not so frequency, such as general machining and assembly workshop). A6 (Used in much more frequency work, such as auxiliary hoisting in metallurgy and casting workshop). A7 (Used in busy working and the hoisting of melted hot metal).

Applications

  • Applied to materials handling between fixed span, and it's one of the most widely used crane with the largest number of varieties of different specifications.
  • Widely used in carrying, assemble and unassembled of general weights, and also can equipped with various special hoists for special operation.
  • Forbid to use in the conditions as easily combustible, explosive, corrosive (acid, alkali, plating, steam, etc.).

Conditions

Working ambient -25℃~+40℃, moisture ≤85%, altitude below 1000 meters, power supply 380V, 50Hz, 3phases (Adjustable according to customer's different requirement).

Hoist and Crane for sale Saudi

As a hoist and crane manufacturer, Dongqi hoist and crane offers Types of cranes and other lifting equipment for material handling market. In the following are the main products for for your reference. (Please click the picture for detailed information.)

  • Wire rope hoist for sale Saudi with good overhead crane price.
    wire rope hoist for sale Saudi with good  price.
  • Electric chain fall hoist for sale Saudi with good overhead crane price.
    Electric chain fall hoist for sale Saudi with good  price.
  • Winch for sale Saudi with good overhead crane price.
    Winch for sale Saudi with good price.
  • European hoist and crane for sale Saudi with good overhead crane price.
    European hoist and crane for sale Saudi with good price.
  • Hoist and Crane parts for sale Saudi with good overhead crane price.
    Hoist and overhead crane parts for sale Saudi with good  price.
  • Types of crane and hoist projects for reference
    Types of hoist and crane projects for reference

Overhead crane and gantry crane turnkey projects in Saudi Arabia

Dongqi Hoist and Crane offers types of european crane and fem crane, such as single girder European crane, double girder European crane, Hoist European crane, Trolley European crane, Gantry European crane, Overhead European crane, Under hang European, etc.

European cranes have such design concepts as small dimension, light dead weight. Compared with traditional overhead cranes, the limiting distance is minimum from hook to wall, and headroom is the lowest, which makes European cranes work more close to the front, and lifting height higher that increases effective working space of workplace. If you want to know more please leave us a message or send us an email to sales@cranesdq.com.

3 ton European overhead  crane for Saudi Arabia

Our customer in Saudi Arabia buy one set European single girder overhead crane with 3 tons for their new workshop. After knowing the details of our customer’s requirements, the price quotation and technical drawing have been sent him soon.

3 ton fem european crane for saudi arabia

Technical drawing of the 3 ton overhdead crane

And then the Saudi Arabia customer sent us their working condition drawing and to make sure that the European crane can be used in their workshop, making confirmation on the crane span of the European crane.

3 ton overhead crane plant drawing saudi arabia

3 ton overhead crane workshop drawing

During the talking I know that they don’t have the supporting rail beam on the bracket so our crane engineer design the supporting rail beam according to their workshop dimensions.
Finally we confirmed the supporting rail beam dimension is HN350*175**7*11 and quote the price to the Saudi Arabia customer.
All the technical requirements are satisfied and then they make the deposit to us and we start the European crane production, during the process we always update the situation to them to make them understand all the conditions.

  • 3 ton European crane main girder
    Main Girder of European 3 ton overhead crane for Saudi
  • 3 ton FEM European Crane End Girder
    End girder of the European 3 ton overhead crane for Saudi

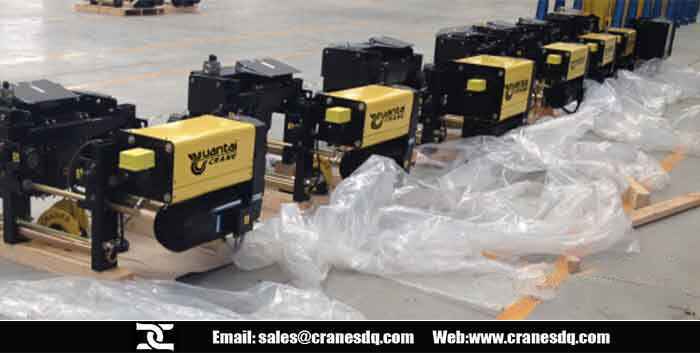

  • European wire rope hoist for the European crane
    European type electric wire rope hoist for 3 ton overhead crane for Saudi

For every step of the European crane production, we will email to our customer to update the production to them and make them clear with the production schedule. When they know this they will give us more trust.


3 ton European crane testing video from the feedback of Saudi Arabia customer

And also they have sent us a video of the European crane running which is clearer for you to understand the European crane’s advantages.

3 ton European crane video feedback from Saudi Arabia customer

Please check to know more about the overhead crane with European standards for sale Saudi Arabia.

5ton gantry crane turnkey projects for Saudi Arabia

Gantry Crane installation in Saudi Arabia

Gantry crane installation in Saudi Arabia

Gantry crane main parameters

  • Type of crane: Single girder electric gantry crane
  • Lifting capacity: 5tons
  • Lifting height: 16 meters
  • Span: 30meters

single girder gantry crane installation procedures

We travel from Beijing and transform the plane through Abu Dhabi finally arrive in Jeddah of Saudi Arab. How the single girder gantry crane installed? In the part, the on-the-spot report will be digested for your reference.

Work out the installation plan for the gantry crane

When we met the customer, we go to gantry crane installation site with customer. And then made one plan how to install the single girder gantry crane and how many days do we need to finish the job and others

1. The process how to install the gantry crane:

  • Install the rail
  • Connect the end carriages and bottom beam
  • Set up the legs
  • Lift up the main girder and installed the hoist
  • Put down the main beam on the legs
  • Electrical works

2. 15 days estimate time to finish the installation of the gantry crane.

3. Installations workers and tools

  • Workers required: 2 welders at least,4 mechanical workers and 2 electrical workers,1 driver to control the 30tons truck crane,1 driver to control the boom lift/scissor lift
  • Tools needed: 4.0 lever weld rod,4 chain blocks with 1ton capacity at least,Tools box, including the wrench, spanner, screw driver, welding machine and others

After confirm the above details, we start the work directly. More on the single girder gantry crane installation Saudi Arabia.

Parts of Clients Reference List in Saudi Arabia

  • M***e Services Co. Ltd for S**C company: Single Girder Gantry Crane5T-30M H=12M,
  • Q***r R***a Y***f Construction Co. Ltd.: Single Girder Gantry Crane 10T-15M H=6M,
  • D***q E**t for contracting: Single Girder Overhead Crane 3T-8.9M H=9M, pillar jib crane 1T-4M H=5M, Pillar jib crane 1T-2.5M H=5M ,
  • Business S***d Trading Corp.: Electric wire rope hoist 0.5T H=9M ,
  • A***I TRADING COMPANY: Single Girder Gantry Crane 8T-17M H=8M ,
  • Arabian M***l Industries Ltd.: Pillar jib crane 2T-2.6M H=1.4M,
  • ALI AL-***N C***TING EST.: Single Girder Overhead Crane 10T-24M H=12M
  • U***l Technical S***s Company: Single Girder Overhead Crane 5T-11.18M H=5M,
  • S***h Al J***a C***ting Co. : Single Girder Overhead Crane 5T-12.5M H=5M,
  • A***d B***s Machines Co. : Electric Winch 3T H=200M,
  • O***n Arabian P***ing Company :Electric wire rope hoist 5T H=10M,
