Electric chain hoist: 300kg-50 ton fixed type electric chain hoists, various chain hoist designs

electric chain hoist for sale. Fixed types electric chain hoist with lifting capacity from 300 kg- 50 ton with various types of fixed type chain hoist designs for sale at good price. Custom fixed type electric chain hoist is available. Get your electric chain hoist today.

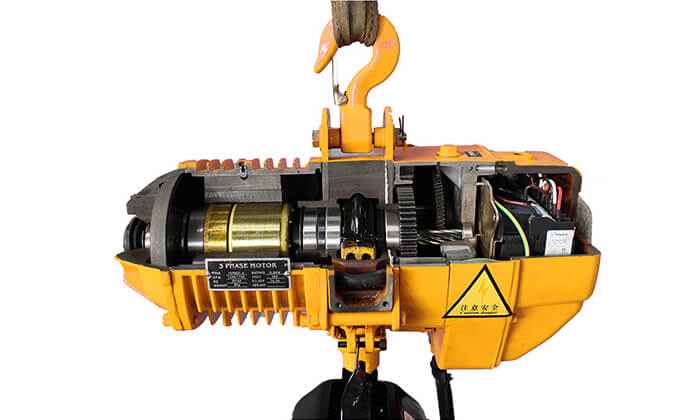

Fixed type electric chain hoist - Dongqi electric chain hoist production workshop

300kgs -50 ton fixed type electric chain hoists

Fixed type electric chain hoist is one type of electric hoist, used with overhead crane, gantry crane, and  jib crane  to be the most widely used material handling solutions. With the proper fixed electric chain hoist, we are able to lift and move the heavy objects and loads at the press of a button.
With proper fixed electric chain hoist, we are able to work with more efficiency, saving more energy, time and money in some extend.
With proper fixed electric chain hoist, we are able to make our working environment with high safety and saves life, living a more enjoyable life.

• Electric chain hoist capacity ranges：300kgs -50tons
• Electric chain hoist low noise: 81db
• Electric chain hoist insulation grade: F class
• Electric chain hoist compact size and easy installation
• Electric chain hoist working temperature: -40℃ – +40℃
• High quality G80 load chain

Dongqi electric chain hoist and hoist drawing

500kg- 5 ton fixed type electric chain hoist

10 ton fixed type electric chain hoist

35 ton fixed type electric chain hoist

Hot capacity of fixed type electric chain hoist

0.5 ton fixed type electric chain hoist	1 ton fixed type electric chain hoist	2 ton fixed type electric chain hoist
3ton fixed type electric chain hoist	5ton fixed type electric chain hoist	7.5ton fixed type electric chain hoist
7.5ton fixed type electric chain hoist	10 ton fixed type electric chain hoist	25ton fixed type electric chain hoist
35ton fixed type electric chain hoist	0.5 ton fixed type electric chain hoist	3ton fixed type electric chain hoist

Features of fixed type electric chain hoists

• Electric chain hoist shell:The cooling fin is especially designed to ensure quick heat dissipation with rate up to 40% and continuous service. The shell of the electric chain hoist is made of die-cast aluminum alloy, light but hard.
• Electric chain hoist motor:Dongqi electric chain hoist adopts the Side Magnetic Series YEP Braking Motor.
• Chain hoist gear:The hoist gear of the electric chain hoist is made of alloy steel by carburizing quenching treatment. Thus transmission with low noise and high efficiency is guaranteed.
• Inverse phase sequence protecting device:Invers phase sequence protecting device is used to cut the circuit of the electric chain hoist in case of wiring error in the power supply.
• Side magnetic braking device:The magnetic force generator is the latest design which is featured for generating magnetic force. It makes electric chain hoist instantly braked as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
• Electromagnetic contactor:Electromagnetic contactor can be used safely under high frequency.
• Control switch:Waterproof push button is applied to electric chain hoist. It is light and durable.
• Limit switch:The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
• Chain bag:The chain bag of Dongqi electric chain hoist is light, attractive and durable.
• Lifting Chain:The lifting chain of Dongqi electric chain hoist usually adopts FEC G80 ultra heat-treated alloy steel chain, which also can be safety in poor environment such as rain, sea water and chemicals.
• Hoist Hook:The lifting hook of Dongqi electric chain hoist is forged with perfect strength which is hard to break.
• The operation safety of the lower hook is ensured by its 360 degrees rotation and safety.
• Support frame:The loading support frame consists of two steel plates, which is extremely sturdy.
• Transformer:24 V/36 V/48 V transformer device. This device is used to prohibit unexpected accidents caused by electric leakage and guarantees the safe use while raining.

Parts of fixed type electric chain hoist

	Shell It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory. Contact to get electric chain hoist parts.
	Motor Manufactured by Dedong Motor factory, Special designed for the electric chain hoist.  Maintenance free. Insulation class F. Protection class IP55. Side magnetic breaking system inside Contact to get electric chain hoist parts.
	Electric trolley High strength low alloy steel structure, with electric motor and high-wearing feature wheels, compact and easy to install Contact to get electric chain hoist parts.
	Chain The chain shall adopt the imported ultra heat-treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals Contact to get electric chain hoist parts.
	Chain bag High wear resistance nylon material, store the lifting chain and prevent the chain from getting entangled with the main card or the chain when the chain is free to slide Contact to get electric chain hoist parts.
	Hook It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap Contact to get electric chain hoist parts.
	Electrics Chint brand, China famous brand, Inverse phase sequence protecting device Contact to get electric chain hoist parts.
	Limit switch The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety Contact to get electric chain hoist parts.
	Pendant with cable Yueqing Brand the best in china Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable. Contact to get electric chain hoist parts.

Other types of fixed types electric chain hoists

•

  Fixed type electric chain hoist

•

  Fixed type electric chain hoist

•

  Fixed type electric chain hoist

Electric chain hoist for sale. Fixed types electric chain hoist with lifting capacity from 300 kg- 50 ton with various types of fixed type chain hoist designs for sale at good price. Custom fixed type electric chain hoist is available. If you need any electric chain hoist, please feel free to contact us to get your electric chain hoist today.

Related reading on fixed electric chain hoist projects

Fixed type electric hoist for Costa Rica: 20 ton chain hoist for sale Costa Rica

Rescourse of Dongqi electric hoists

•
  Electric hoists of various tonnages
•
  Custom electric hoist & manual hoists projects
•
  Electric hoist agent

Get your custom electric hoist design

In order to give you suitable electric hoist solution and specific electric hoist price promptly, please help our electric hoist engineer to confirm the following information as much as possible:

1. Types of hoist: chain hoist or wire rope hoist?
2. Capacity:
3. Height of Lift
4. Power supply: (3phase? Voltage? Hz?)
5. Quantity:
6. Operation: Through Pendant/Radio Remote
7. Indoor/Outdoor:
8. Application (What are you planning to lift)
9. Environment (Normal/ hazardous)
10. Location
11. Industry type: ( Eg: Auto, steel, sugar stone, etc.)
12. Rail Existing/New (Size in case of Existing)
13. Number of hoist:
14. Existing Structure/New Structure:

Leave your electric hoist requirement below, and custom electric hoist solution will be offered for free. Email: sales@cranesdq.com.

As the leading and famous cranes and hoists manufacturer & supplier in China, Dongqi can provide mini electric hoists with competitive advantages, durable materials, security protection, reasonable design and reliable performance. If need mini hoist, please feel free to email us.
