Electric wire rope hoists, Dongqi your electric wire rope hoists factory & Supplier

25 Sep, 2019

Electric wire rope hoists overview: Traditional & European electric wire rope hoists, Single / Dual speed electric wire rope hoists, standard and custom design electric wire rope hoists, i.e. double / dual hooks hoists for simultaneous lifting up and down, etc., to meet your hoisting requirements. 500kg -100 ton electric wire rope hoist for sale from, Dongqi, your electric hoist manufacturer and supplier China. Which type of electric wire rope hoist, do you need?

Electric electric wire rope hoist for general use

Electric electric wire rope hoist

Electric electric wire rope hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, overhead crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. More information, please check Dongqi electric wire rope hoist cast study.

Electric electric wire rope hoist basics helps you to find out how to select electric wire rope hoist, how to check the electric wire rope hoist before use, how to install and maintain your electric wire rope hoists, etc. As a electric wire rope hoist manufacturers and suppliers, Dongqi will help you to find the most suitable electric hoist design at cost-effective electric wire rope hoist price. Contact to get your electric wire rope hoist now by email to sales@cranesdq.com.

Basics of electric wire rope hoists

Electric electric wire rope hoists designs vary according to the types of electric wire rope hoists, and the basics of standard electric wire rope hoists are the same.

The proprietary series built, rope hoist unit would be selected from our extensive range of units which have a worldwide reputation for reliability, modern design, safety and the very latest Electric Wire Rope hoists manufacturing techniques.

  • The modular design forms a very efficient, compact visually aesthetic unit.
  • The rope hoist transmission train is a direct drive type with no coupling.
  • The wire rope drum is mounted in maintenance free bearings located within the rope hoist bearer frame. The drum is accurately machine grooved to accommodate the rope hoisting wire rope in one layer. And is designed to leave a minimum of 3 (three) turns on the drum when maximum lift height is reached.
  • A wire rope guide is provided to prevent slack wire rope and to smoothly guide the wire rope onto the drum.
  • The wire rope is securely attached to the drum with 3 (three) wire rope clips.
  • The bottom hook block is of the safety type, having fully guarded deep grooved sheaves, running in sealed ball bearings. The hook is a forged steel single point “C” Type, mounted on a ball thrust race and fitted with a spring return safety catch.

Types of electric wire rope hoists

In China, there are manyrope hoists manufactureswho provide standard electric wire rope hoists all over the world.
The wire ropes, as a matter of fact, are flexible and composed of several steel or fiber wire, the quality of which are necessary to be measured. A sample wire rope specifications are of l6×37 or 6 x19, which indicates its number of standard x number of wires per stand. In China, there are a large number of firms, factories and companies which can offer the standard electric wire rope hoist with quality wire ropes.

As a hoist manufacturer and supplier, Dongqi Hoist and Crane offers types of electric hoists for customers, mainly electric chain hoist and electric wire rope hoist, etc. Dongqi electric wire rope hoists offering includes single / double speed hoist, low headroom hoist, explosion proof hoist, safety hoist, etc. The hot electric wire rope hoists are presented for your referencef in the following:

Single speed wire rope electric hoist

CD Single speed wire rope electric hoist

Single speed electric wire rope hoist specifications:
  • Capacity of electric wire rope hoist: 0.5 to 32 ton
  • Hoisting speed (m/min): 8
  • Travel speed (m/min): 20、30
  • wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Double speed wire rope electric hoist

MD Double speed wire rope electric hoist

Double speed electric wire rope hoist specifications:
  • Capacity of electric wire rope hoist: 0.5 to 32 ton
  • Hoisting speed (m/min): 0.8/8
  • Travel speed (m/min): 20、30
  • wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Mini electric electric wire rope hoist for sale

Small electirc hoist for sale

Small / Mini electric wire rope hoist specifications:
  • Product Type: PA200~PA999
  • Capacity of electric wire rope hoist:0.2~1t
  • Lifting height of wire hoist: 3~24m
  • Working Class: M3
  • Ambient Temperature:-25~40℃
  • MOQ:20 sets
Inquire electric hoist now.
metallurgical wire rope electric hoist

Metallurgy wire rope electric hoist

Metallurgy electric wire rope hoist specifications:

  • Hoist Type: YH
  • Capacity of electric wire rope hoist: 1~20t
  • Lifting Height of wire hoist: 6~18m
  • Working Class: M5
  • Ambient Temperature: -10℃~+60℃
Low headroom wire rope electric hoist

Low headroom wire rope electric hoist



Low headroom electric wire rope hoist specifications:
  • Capacity of electric wire rope hoist: 0.5 ton -20 ton, 80 ton
  • Hoisting speed (m/min): 0.8/8
  • Travel speed (m/min): 20、30
  • wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Explosion proof wire rope electric hoist

Explosion proof wire rope electric hoist.

Explosion proof electric wire rope hoist specifications:
  • Capacity of electric wire rope hoist: 0.5 to 32 ton
  • Hoisting speed (m/min): 0.8/8
  • Travel speed (m/min): 20、30
  • Wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Fem European wire rope electric hoist

FEM wire rope electric hoist

European standard electric wire rope hoist specifications:
  • Capacity of electric wire rope hoist: 1~20 ton, 1-80ton
  • Lifting height of wire hoist: 6~18m
  • Lifting Speed: 0.66/4—1.6/10m/min
  • Working Class: M5
  • Travelling Speed: 2-20m/min
  • Ambient Temperature: -20~40℃
Inquire electric hoist now.

Electric rope hoist is useful for heavy load lifting, and the electric rope hoist is a superior safe and favorable device, which offers the good investment for your business. Many electric rope hoist manufacturers in China provides many advantages for your workshops in terms of material handlings.

Custom designed electric wire rope hoists

Square electric wire rope hoist for sale

Square electric wire rope hoist

  • Capacity of electric wire rope hoist: 6t - 100t
  • Working class of electric wire rope hoist: M3-M6
  • Application of electric wire rope hoist: Factory, mining, railway, yard, warehouse, and others, etc.
Inquire electric hoist now.

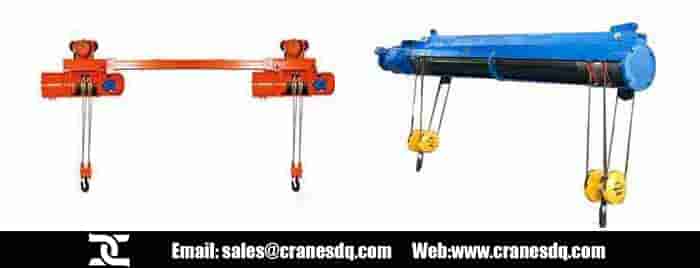

Conjoined electric wire rope hoists with two hooks

Conjoined electric wire rope hoists with two hooks

Conjoined electric wire rope hoists with two hooks makes the simultaneous lifting of two hooks possible and also make the single hook lifting possible.

The conjoined electric wire rope hoists is often used for the simultaneous lifting of two hooks with a steel bar welded between the two electric wire rope hoists, which make the distance of the two hoists and lifting hooks fixed, without the function of power control and transmission.

Shared drum electric wire rope hoists with two hooks

Shared drum electric wire rope hoists with two hooks

Shared drum electric wire rope hoists is two electric wire rope hoists placed at each side of a hoist drum with two hoist hooks can be used at same time or separately. The Shared drum electric wire rope hoists with two hooks is for long objects handling with high lifting speed, which is more than 10 m/ m and lifting , which can be customized.

  • Capacity of electric wire rope hoist :0.5T、1T、2T、3T、5T、10T
  • Lifting height of electric wire rope hoist :H=6m-24m
  • Distance between hooks of electric wire rope hoist:1.2m≤L≤5m
Noted: The two hooks can be used separated but when use the single hook, the other hook has be to lift up to avoid collision and accident. If the distance of two hook is narrow, please pay close attention on hoist operation to avoid twining.
Inquire electric hoist now.
Coaxial electric wire rope hoists with two hooks

Coaxial electric wire rope hoists with two hooks

Coaxial electric wire rope hoists with two hooks is used for long object or loads handling, whichis a new modification of two CD wire rope hosts, which is connected by the same axial to make the simultaneous movement of two hooks.

  • Capacity of electric wire rope hoist:2*10T、2*16T、2*32T
  • Lifting height of electric wire rope hoist:H=6m-24m
  • Distance between two hooks of electric wire rope hoist :1.2m≤L≤7m
  • Speed of electric wire rope hoist: Single speed as your request.

Coaxial electric wire rope hoists with two hooks is nonstandard design and need to contact us to confirm the details.

Linked axial electric wire rope hoists

Linked axial electric wire rope hoists

Linked axial electric wire rope hoists is used for the simultaneous material handling at dual speeds which is composed of two double speed MD electric wire rope hoists, connected by the linked axials. The distance of the two hooks is usually around 3000 mm, and widely used for the lifting up and down of small water gates.

  • Capacity of electric wire rope hoist:2*10T、2*16T、2*32T
  • Lifting height of electric wire rope hoist:H=6m-24m
  • Distance between two hooks of electric wire rope hoist :1.2m≤L≤7m
  • Speed of electric wire rope hoist: Duel speeds is as per your request.
Inquire electric hoist now.

Hoists parts of electric wire rope hoist

Wire rope electric electric wire rope hoist parts: Motor

Lifting motor &Travelling motor
Manufactured by Nanjing Special Motor factory, Chinese best motor brand.
Special designed Squirrel-cage motor for the electric hoist.
Maintenance free. Insulation class F.
Protection class IP54.
Electromagnetic disc type brake system
More on electric wire rope hoist parts: Motor

Electic trolley- Wire rope electric electric wire rope hoist parts

Electric trolley
Alloy gear and wheels, 125% testing load of the rated capacity. Braking method please see the travelling motor details.
More on electric wire rope hoist parts: electric trolley

Gear box - Wire rope electric electric wire rope hoist parts

Gear box
Zhong Rui brand
Totally enclosed type with Splash Lubrication, gear box shell pressure casting

Winding drum- Wire rope electric electric wire rope hoist parts

Winding drum
Dongqi Crnae manufacture. Seamless Q235 B steal tube
More on electric wire rope hoist parts: winding drum

Wire rope electric electric wire rope hoist parts

Wire rope

Rope structure 6×36SW, steel core, diameter 15 mm.

Hoist hook - Wire rope electric electric wire rope hoist parts

Hook
Forged type with safety latch

Rope guide - Wire rope electric electric wire rope hoist parts

Rope guide
Installed on the winding drum to guide the wire rope, nodularcastiron
More on electric wire rope hoist parts: rope guide

Limiting stoper - Wire rope electric electric wire rope hoist parts

Limiting stopper
For the vericatial lifting stopper
More on electric wire rope hoist parts: limiting stoper

Control- Wire rope electric electric wire rope hoist parts

Control
Pendant control with cable. Six direction button, including up and down, left and right, forward and backward. Protection class IP 65
More on electric wire rope hoist parts: Pendant control

Electric electric wire rope hoists drawing for your reference

CD1 type 0.5t-5 ton electric wire rope hoist drawing, lifting height 6m-9m electric hoist outline drawing

CD1 type 0.5t-5 ton electric wire rope hoist drawing, lifting height 6m-9m electric hoist outline drawing

CD1 type 0.5t-5 ton electric wire rope hoist drawing, lifting height 12m-30m electric hoist outline drawing

CD1 type 0.5t-5 ton electric wire rope hoist drawing, lifting height 12m-30m electric hoist outline drawing

CD1 type 10 ton electric wire rope hoist drawing, lifting height 9m-30m electric hoist outline drawing

CD1 type 10 ton electric wire rope hoist drawing, lifting height 9m-30m electric hoist outline drawing

CD1 type 10 ton electric wire rope hoist drawing, lifting height 35m-100m electric hoist outline drawing

CD1 type 10 ton electric wire rope hoist drawing, lifting height 35m-100m electric hoist outline drawing

16 ton electric wire rope hoist drawing

16 ton electric wire rope hoist drawing

50 ton electric wire rope hoist drawing

50 ton electric wire rope hoist drawing

Electric electric wire rope hoist production and testing

Electric electric wire rope hoist covering processing- Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist covering processing- Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist gears and electric trolley - Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist gears and electric trolley - Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist  rolling drum and installation - Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist rolling drum and installation - Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist paiting and testing - Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist paiting and testing - Dongqi electric wire rope hoist for sale

Electric electric wire rope hoist for sale. 0.5 ton -32 ton rope hoist/ wire hoist for sale. Dongqi offers types of electric wire rope hoists, such as, single/ double speed wire rope host, explosion proof electric wire rope hoist, metallurgy electric wire rope hoist, European FEM standard electric wire rope hoist, etc. Which type of electric wire rope hoist, do you need? Contact us to get your custom electric wire rope hoist.

Electric electric wire rope hoist projects list (Parts)

2 ton explosion-proof electric wire rope hoist Thailand

2 tonexplosion-proof electric wire rope hoist Thailand. Explosion proof hoist is a type of electric wire rope hoist with high safety, used in hazardous environment. Check explosion proof wire rope electric wire rope hoist now. Dongqi explosion proof electric wire rope hoist at good price.

16 ton electric wire rope hoist Russia.

16 ton electric wire rope hoist Russia. Dongqi 16 ton electric wire rope hoist with 9 meter lifting height for sale Russia. Dongqi hoist and crane manufacturer offers Types of cranes, i.e., overhead crane, gantry crane, jib crane, electric wire rope hoist, winch and other lifting equipment for Russia market.

10 ton Electric wire rope hoist Egypt

Dongqi 10 ton electric wire rope hoist with 10 meters lifting height for sale Egypt. Dongqi Hoist and Crane offers types of cranes, i.e., overhead crane, gantry crane, jib crane and electric wire rope hoist, winch and other lifting equipment for Egypt market.

5 ton Electric wire rope hoist for sale Indonesia

5 ton Electric wire rope hoist for sale Indonesia. As a electric wire rope hoist manufacturer and supplier, Dongqi Hoist and Crane offers types of hoists for customers, including single / double speed hoist, low headroom hoist, explosion proof hoist, safety hoist, etc.

45 ton Electric wire rope hoist, Custom electric wire rope hoist, Electric wire rope hoist

45 ton electric wire rope hoist. Dongqi Hoist and Crane offers types of electric wire rope hoist, single/double speed electric wire rope hoist, fem electric wire rope hoist with lifting capacity up to 80 ton. Check the custom made 45 ton electric wire rope hoist for your reference.

5 ton electric wire rope hoist with 50 m lifting height for sale Pakistan

Electric electric wire rope hoist for sale. Dongqi custom designed 5 ton electric wire rope hoist with 50 m lifting height for sale Pakistan. Dongqi offer types of electric wire rope hoists, single / double speed electric wire rope hoist, and explosion proof electric wire rope hoist, and metallurgy electric wire rope hoist, etc. Check custom 5 ton wire rope host project and get your individualized electric wire rope hoist now.

40 ton electric wire rope hoist is designed for Philippines

Rope hoist for sale Philippines.Types of customer electric wire rope hoists, electric chain hoist, electric wire rope hoists are for sale in Philippines customers from Chinese electric wire rope hoist suppliers and manufacturers, Dongqi Hoist and Crane.

5 ton electric wire rope hoist with 40 m lifting height

5 ton electric wire rope hoist custom design with 40 meters of lifting height from Dongqi Hoist and Crane, your electric wire rope hoist manufacturer. Dongqi types of electric wire rope hoists for sale. Contact Dongqi as your electric wire rope hoists manufacturer and supplier now.

1 ton electric wire rope hoist and 3 ton electric wire rope hoist are delivered to Estonia.

Dongqi offers types of electric wire rope hoists and cranes, such as electric chain hoist, electric wire rope hoist, workstation crane, shop crane, factory crane, and other types of cranes, etc.

5 ton overhead crane electric wire rope hoist installation picture

Dongqi Crane offers types of overhead cranes, gantry crane, jib crane, workstation crane, shop cranes, electric wire rope hoist, winch and trolley for Hongkong market. The 5 ton single girder overhead crane case is presented for your reference.

In the above, it is some of Dongqi electric wire rope hoists and crane projects for your reference. If you want to know more about Dongqi's projects around world,please contact us by email to sales@cranesdq.com.

Get your custom electric wire rope hoist

Tips on electric wire rope hoists selections

  • Before choosing a suitable rope hoist for your firm, it is advisable to evaluate its all features.
  • While choosing a rope hoist, consider its quality, durability and other important elements.
  • Cost is also an aspect while choosing a rope hoist, that is why analyze wire rope rly about different types of rope hoists available in the market
  • Determine that rope hoists are able to lift heavy loads, requires in your business.

Parameters needed to get your custuom electric wire rope hoist

Electric hoist parameters drawing

In order to give you suitable electric hoist solution and specific electric hoist price promptly, please help our electric hoist engineer to confirm the following information as much as possible:

  1. Types of hoist: chain hoist or electric wire rope hoist?
  2. Capacity:
  3. Height of Lift
  4. Power supply: (3phase? Voltage? Hz?)
  5. Quantity:
  6. Operation: Through Pendant/Radio Remote
  7. Indoor/Outdoor:
  8. Application (What are you planning to lift)
  9. Environment (Normal/ hazardous)
  10. Location
  11. Industry type: ( Eg: Auto, steel, sugar stone, etc.)
  12. Rail Existing/New (Size in case of Existing)
  13. Number of hoist:
  14. Existing Structure/New Structure:

Electric wire rope hoists overview: Traditional & European electric wire rope hoists, Single / Dual speed electric wire rope hoists, standard and custom design electric wire rope hoists, i.e. double / dual hooks hoists for simultaneous lifting up and down, etc., to meet your hoisting requirements. 500kg -100 ton electric wire rope hoist for sale from, Dongqi, your electric hoist manufacturer and supplier China. Which type of electric wire rope hoist, do you need? Contact to get your wire rope electric hoist now.

Top
