40 ton roll and coil lifting tong for steel factory in Russia| Coil handling equipment

30 Mar, 2018

Lifting tongs are normal coil handling equipment in crane industries, sorted into mechanical lifting tongs and electric lifting tongs, matched with steel mill cranes, to handle roll, coil & billets, etc. It is necessary to install lifting tongs in steel plant. With the help of lifting tongs, your double girder overhead crane will work with high efficiency.

Dongqi Crane can customize lifting tongs and other different types of slings according to the provided drawings. In the following the cases of 40 ton coil lifting tong for Russian steel plant is presented for you to get your suitable coil lifting equipment.

40 ton coil lifting tongs for Russian steel plant

During the negotiations with Russia client, Dongqi Crane customize the lifting tongs according to the drawing provided.

Drawing provided by client:

Coiling fliting tong for steel mill crane - Dongqi double girder overhead crane

Roll and coil lifting tong for steel mill crane provided by Russian client

There are some main points need to be mentioned during the negotiations of lifting tongs.

  • Roll or Coil dimensions & temperature.
  • Lifting tongs drawing if there is.
  • Electric type or mechanical type
  • For electric type, cable drum and cables length, lifting height of crane.
  • DC Power or AC power.

Initial design of coil lifting tong

At the first stage, Dongqi Crane sent the offer of mechanical lifting tong.

Mechanical lifting tong for steel mill crane - Dongqi overhead crane

Mechanical lifting tong for steel mill crane

For mechanical lifting tongs, the cost is less and easy installation and operation. There are two ways, Dongqi Crane can offers you the suitable mechanical lifting tongs for your appliaciton.

  • Custom design according to your equirements and application conditions. Dongqi Crane only need to know the coil dimensions and lifting capacity, and send the drawing and proposal;
  • In other way, customize the dimensions according the drawing sent by clients.

Final solution for coil lifting tong

After repeat confirm, the electrical lifting tong is needed, and the related parameters such as cable length are confirmed. For cable drum is installed on the drum of crane hoist, there is electrical connector between cable drum and lifting tong. It is related with the lifting height of crane.

Main specifications of coiling lifting tongs for Russian client:

  • Type: Electric Lifting Tong
  • Country: Russia
  • Usage: Roll lifting and handling
  • Lifting capacity: 40t
  • Power : DC 220v
  • Coil temperature: 800℃
  • Coil Dia: 2100mm

Electrical coil lifitng tong for steel mill crane  Russia

Electric lifting tong for double girder overhead crane used in steel plant for reference

Cables and cable drum for electric lifting tong

For electric lifting tong, many clients asking about the cable drum and cables, there are spring type cable drum and electric type cable drum, Dongqi Crane can provide both type of cable drums along lifting tong, while spring type cable drum is the more popular, below is the general dimensions of spring type cable drum. lifting tong cable drum is different with crane power lines cable drum, it is installed on the drum of electric hoist to send power to lifting tong through cables.

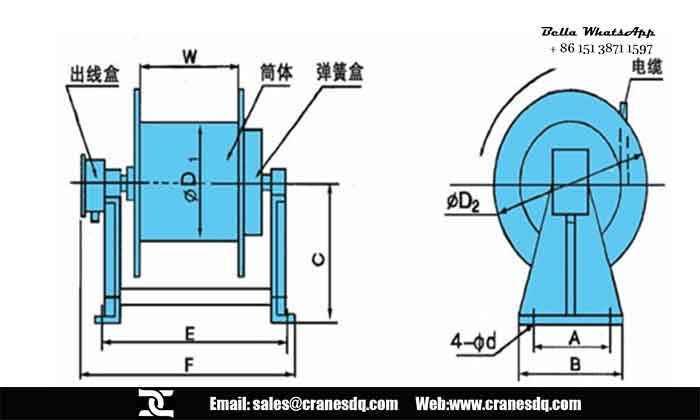

Cable drum for lifting tong
Lifting tong spring type cable drum

There are some clients buy cable drums in local, in this case, Dongqi Crane can provide the matched cable drum dimensions for client and electric diagram of lifting tongs.

How to get suitable coil lifting for your steel plant?

The following questions are for your reference to select your coil lifting tong:

  • What is the power source? Electric lifting tong or mechanical lifting tong?
  • What is the lifting tong used for? Loads temperature? Loads dimensions?
  • Lifting capacity of the lifting tong?
  • Cable drum and cables for electric lifting tongs: How long is the cables? What is the lifting height? For cable drum is installed on the drum of crane hoist, there is electrical connector between cable drum and lifting tong. It is related with the lifting height of crane.

What Dongqi Crane can do for steel industries

Dongqi Crane specialized in supply Types of cranes and related crane parts, such as, lifting slings, such as circular magnets for scrap lifting, rectangular magnet with carrier beam for handling billets and grab bucket for scrap handling etc. All the above is customized and also Dongqi provide technical drawings and specifications to match the real needs of clients.

Recent years, along with steel industries rising up, more and more steel plant need the lifting devices very much, Dongqi Crane supply the heavy duty cranes for steel industry, at the same time, propose the suitable lifting devices.

Dongqi Crane also provide the inspections after production, client can send their people to check the lifting tong material, test load and do measurement of required dimensions at factory site.

If you need the coil lifting tong or any type of steel mill crane, please contact us or leave a message below. We will contact you within 24 hours. Dongqi crane offer customized steel mill crane and metal handling equipment for you.
