Bridge crane runway and platforms and bridge crane structure manufacturing, inspection, and maintena

bridge crane structures manufacturing, inspection, and maintenance tips help to select the right bridge crane structures, bridge crane runway, and platforms, etc for your bridge crane. Check the bridge crane structures tips now.

 Lifting crane is always running on a fixed install rail, supported by bridge crane structrues made of concrete or steel. The bridge crane structures can be designed, fabricated and installed by Dongqi Crane.

bridge crane structrues designing is also a part of Dongqi Crane’s business. bridge crane structrue design and fabrications for overhead crane, gantry crane, truss crane and other bridge crane structures of cranes are available from Dongqi Crane for the sake of providing more competitive material handling solution for customers.

With professional crane designing team, Dongqi Crane can provide custom crane and bridge crane structure design according to your application and lifting requirements. Due to optimized crane and hoist design, the lifting equipment of Dongqi Crane is small in deadweight, wheel load, and total height, which enables you to lower the height of workshop with better structure, saving your initial investment on factory workshop construction by more than 15%.

bridge crane structure, free standing runway structures

Full overhead or suspension bridge crane structure – Free standing columns including load sharing

Full overhead or suspension bridge crane structure – Free standing columns including load sharing connection beams – consoles or load points to connect the runway beam to this structure.
The bridge crane structrue consisted of crane runway beam, columns, which are available on request.

Crane runways

Crane runways for all Types of cranes are available from Dongqi Crane.

• Overhead: Rail welded on hot rolled beam.
• Suspension: Hot rolled beam’s.
• Gantry: Mostly concrete fundament with steel load sharing plate and on top a rail profile, welded or clamped.
• Or combined runways for jib cranes or Semi Gantry’s, just send us your request

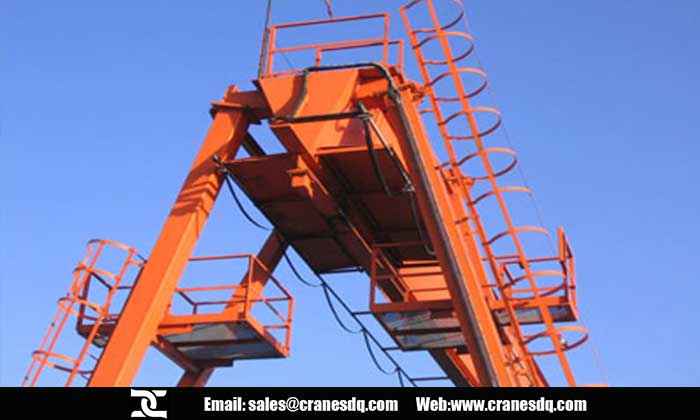

Safe Access Platforms

Safe access platform

bridge crane structure manufacturing process

bridge crane structure refers to the main beam, end beam, trolley frame, walk platform, platform, ladder, railings, and conductor frame.

1. Materials, parts and complete machine anti-corrosion treatment

Our company's steel are procured from Anyang Iron and Steel, Handan Iron and Steel and other large steel factory, the material is for the Q235B flat. We can provide the material book and the certificate to the user. After enter into the plant and the sampling by the laboratory for chemical composition and mechanical properties analysis, unqualified raw materials are not allowed to adopt. Raw material corrosion rating shall not exceed the C-level, all sheet metal must be pre-processed before cutting, parts and complete machine is for shot blasting and manual sandblasting, after that, parts and machine can improve the surface finish and roughness, enhance the adhesion of the primer and substrate, improve the paint film protection and corrosion protection performance, effectively eliminating the product stress in the manufacturing process, improve product quality. Pretreatment of steel plate need to meet the requirements of grade rust Sa2.5, roughness RZ40-80 mm, WS-type inorganic zinc silicate shop primer 15-20 mm, less than 6 mm of the plate pickling treatment, spray ring Oxygen-rich zinc primer, to prevent the corrosion in the crane manufacturing process.

2. Flat orthopedic

Pretreated plate is corrected in the flat-panel machine, to reduce the wave of the web and the cover plate, to ensure the strength of the plate, to reduce the beam under the deflection deformation in the process of using.

3. Bridge processing

• (1) Steel shot blasting pretreatment to improve the mechanical properties of steel and paint adhesion.
• (2) According to the crane span, the computer control cutting machine, cut out the secondary curve, the fourth curve or two curves of the superposition of the web and the upper plate, so that the degree of pre-crown coincides with crane arch degree.
• (3) With the welding equipment for the main beam welding, welding order according to reasonable arrangements to reduce welding distortion.
• (4) The butt welds of the webs and the upper and lower cover plates use submerged arc welding. The longitudinal welds of the main girder and the end girders are controlled by a computer controlled CO2 gas automatic welding. After welding, 100% of the welds are inspected by X-rays.
• (5) Bridge docking with a large flip machine so that all welding is the flat welding, in order to ensure the welding quality.
• (6) After welding is completed, processing vibration effect in order to eliminate welding stress.

4. Quality control points

A. Web and upper and lower cover butt weld quality control

• (1) Place each plate on the platform and press firmly with the platen screws to perform the tack welding.
• (2) On both welding sides of the 30 mm degreasing rust.
• (3) Welding direction point to the side of the walk platform by using submerged arc welding machine, according to process requirements to adjust the voltage and current, then records.

B. On the crown control

• (1) Using computer-controlled automatic cutting machine for web cutting, arch curve function F (X) = in (1 -4x2 / s2).
• (2) After the main beam welding, with steel wire, heavy hammer, steel ruler to detect, according to the test results to determine the four weld sequence.
• (3) After the completion of the welding, processing a test on the degree of the arch, if not meet the requirements, using the flame correction method to be amended; if meet the requirements,
• (4) The bridge installation according to a single girder arch value and standard requirements, the use of rail pressure plate in the welding support different locations. Meet the requirements, directly installation.
• (5) After the completion of the bridge, the test by national standards for testing methods, apparatus, in the absence of sunshine, meet the requirements into the loading process.

C. The main beam span control

• (1) The span of the main beam is carried out when the bridge is mounted and the cart is assembled.
• (2) When the bridge is installed, the longitudinal centerline is drawn on the top beam of the end beam, and the cross centerline assembled with the main beam, and the vertical plane of the bending plate is led to the intersection of the upper cover plate and its longitudinal centerline, then drill eye, the main beam and end beam cross center line alignment.
• (3) Adjust the end beam to ensure the required size, in which the span of control based on the nominal size according to the span increase the number in order to eliminate the impact of welding shrinkage. After welding, one end of the steel tape is fixed, put 15 KG tension on the other end of the steel tape and measure the upper plate punching holes and curved plate holes, qualified and transferred into the cart loaded.
• (4) After the cart is installed, measure the span of the wheel in the same way. If there is any problem, adjust the wheel until the technical standard is reached.

bridge crane structure inspection

bridge crane structures inspection is for you to know the condition of your bridge crane structrues for the sake of crane safety. The bridge crane structures bear the weight of your lifting operations, which are subjected to fatigue as loads are lifting, and as fatigue life ends, crane safety can be compromised.
Dongqi Crane steel inspection ensures your crane safety, providing you an accurate, detailed picture of the remaining fatigue life of bridge crane structure and identify defects.

Why perform bridge crane structures inspection

•  Ensure your crane safety
• The bridge crane structure inspection can help you make decision on crane modernization or new crane buying.
• Crane steel inspection is conducted when the bridge crane structure runs out of the design services life to make sure whether it can be used continuously.

How to inspect your bridge crane structure?

• Visual inspection

The use history of the crane will the inspected, and a visual inspection will be conducted to the bridge crane structure, including trolley structure by a group of well-trained and qualified inspector.

• Non-destructive testing

Non-destructive testing can be conducted, if needed.

• 3D modeling

3D modeling will be used and the bridge crane structure fatigue can be calculated by the software, according to EN 13001-3-1 and ISO 12482 standards.

Why to choose Dongqi bridge crane structure

As a professional crane designer and manufacturer, Dongqi crane is able to provide you bridge crane structures for various types of cranes, such as, overhead crane, single girder crane, double girder crane, gantry crane, truss crane, semi-gantry crane, jib crane, etc.

Why to choose Dongqi bridge crane structure? You can choose us for the following reasons:

• Material cost.

Dongqi bridge crane structure is more cost-effective comparing with traditional structure. Due to the relatively lower price of steel, Dongqi bridge crane structure is much more cost-effective.

• Accurate design

The bridge crane structure can be designed according to your workshop and crane application accurately. Dongqi bridge crane structure can fully meet your crane requirements.

• Quick assembly

Dongqi bridge crane structures can be assembled at your application site quickly, which are simple to assemble, saving your labor and material costs.

• High safety, flexibility, and portability

Dongqi bridge crane structure can provide you high safety, flexibility and portability.

Feel free to contact us for more information on lifting cranes and bridge crane structures, runway, and other lifting equipment.
