Indonesia 5 Ton Wire Rope Hoist for Logistics Hub - DQCRANES

• Client: PT. Logistik, Indonesia
• Industry: Warehousing and Freight Distribution
• Project Scope: Supply and export 2 sets of 5 ton single-speed wire rope hoists, Festoon cable with C track, and 84-meter seamless busbar lines for a large logistics hub in Indonesia.

Project Overview

DQCRANES collaborated with PT. Logistik to modernize cargo-handling operations at their Surabaya logistics hub. The facility required heavy-duty hoists to manage palletized goods and machinery across a multi-level storage system. Key specifications included:

• 2 x Single-speed wire rope hoists 5 ton: Optimized for vertical lifting and horizontal traversal in high-usage environments.
• C-shaped track with festoon cable systems: Ensured smooth movement along the extended slide line.
• 84-meter seamless busbar lines: Custom-engineered for structural integrity over long spans.

Client Requirements & Challenges

High Vertical Storage: The 12-meter lifting height demanded precise load control and anti-sway mechanisms.

• Speed vs. Safety: Balancing 8 m/min lifting speed with stability in humid conditions.
• Space Constraints: Installing hoists in a congested warehouse with limited overhead clearance.
• Regulatory Compliance: Meeting electrical components and structural safety.

Wire Rope Hoist for Sale in Indonesia

1. Capacity: 5 tons (single-speed operation).
2. Lifting Height: 12 meters.
3. Lifting Speed: 8 m/min (equipped with dual braking systems for safety).
4. Traveling Speed: 20 m/min (along a reinforced I-beam runway).
5. Wire Rope: 15mm diameter, High strength, Strength of extension: 1670 N/m2, Size: 6*37+ FC 1670, excellent security.
6. Motor: Insulation class F, IP54 protection for dust and moisture resistance.
7. Control System: Pendant-operated with voltage: 380V/50Hz (adapted to Indonesian power standards).
8. Safety Features: Overload protection, limit switches, emergency stop, and phase failure protection.
9. Compliance: CE, ISO certified.

5 Ton Electric Wire Rope Hoist Solution

Hoist Design Enhancements:

• Reinforced drum and wire rope system to handle frequent starts/stops at 8 m/min.
• Anti-sway technology to minimize load oscillation during high-speed lifting.
• Compact hoist body to fit tight overhead spaces.

Climate Adaptations:

• Corrosion-resistant galvanized wire rope and epoxy-coated electrical components.
• Heat-resistant motor insulation for sustained performance in Indonesia’s tropical climate.

Runway System:

• Fabricated I-beam runways with adjustable end stops for 20 m/min traveling.
• Bolt-on modular design for easy assembly in confined areas.

Seamless Busbar Lines Design:

• Semless busbar system for easy shipping and on-site assembly.
• Reinforced support columns every 28 meters to prevent sagging.

Manufacturing & Exporting

Installation & Commissioning

Timeline: 6 weeks (including beam assembly, hoist mounting, and testing).

Process:

• DQCRANES engineers remotely supervised local teams to ensure precise alignment of the C-shaped track.
• Load testing with 6.25 tons (125% of capacity) confirmed safety margins.
• Client staff trained in maintenance protocols (e.g., wire rope inspection, lubrication).

Operational Results

• Efficiency: Reduced loading/unloading cycles by 30% due to faster lifting and traversal speeds.
• Space Utilization: Enabled vertical stacking up to 12 meters, optimizing warehouse footprint.
• Reliability: Zero downtime reported in the first 6 months post-installation.
• Client Feedback: Highlighted DQCRANES’ responsiveness to customization needs and adherence to timelines.

Hot Electric Wire Rope Hoists of DQCRANES

As a leading hoist manufacturer and supplier, DQCRANES offers types of electric hoists for customers, mainly electric chain hoist and electric wire rope hoist, etc. Dongqi electric wire rope hoists offering includes single / double speed hoist, low headroom hoist, explosion proof hoist, safety hoist, etc. The hot electric wire rope hoists are presented for your referencef in the following:

• CD electric wire rope hoist
• MD electric wire rope hoist
• Explosion proof electric wire rope hoist.
• Metallurgy electric wire rope hoist
• FEM electric wire rope hoist

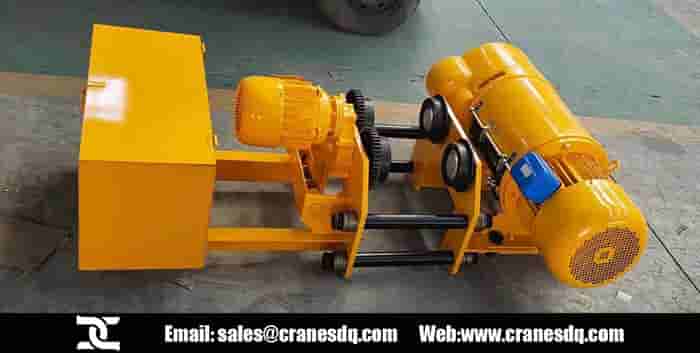

• Low headroom electric wire rope hoist
