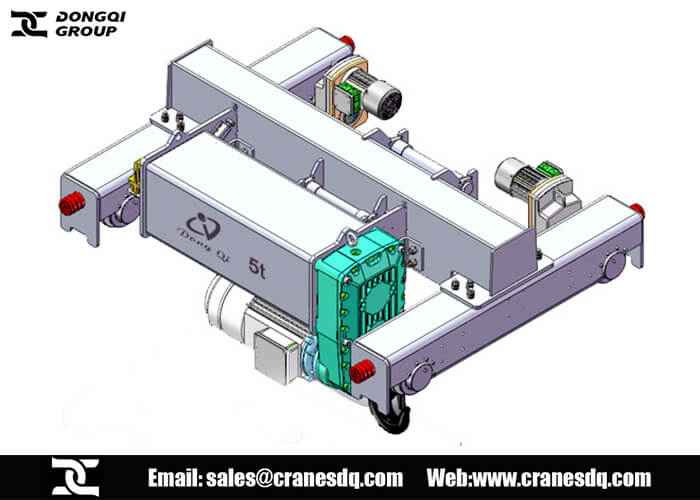

Electric Hoist for Uzbekistan: 5 Ton Low Headroom European Wire Rope Hoist for Sale

European wire rope hoist, also called FEM electric hoist, European FEM standard hoist is a new kind of low headroom wire rope electric hoist. european electric hoist has the characters of compact structure, modularity, high space utilization, large working scope, smooth travelling, high efficient lifting stroke, etc. Dongqi European 5 ton electric wire rope hoist for sale is easy to remove and installation and maintenance.

European Wire Rope Hoist Design Features:

• The integrated compact design of the hoisting motor, reducer, reel and hoist limit switch saves user space.
• The modular design enhances the reliability of the organization while reducing maintenance time and costs.
• With faster and more hoisting speeds and a variety of pulley ratios to choose from.
• The standard trolley running mechanism makes the lifting objects with small swing and accurate positioning when the trolley is travelling, and can safely and reliably lift precision valuables.

electric hoist for sale to Uzbekistan Customer:

• Type: European electric wire rope hoist
• Lifting capacity: 5 ton
• Lifting height: 9m
• Power supply: 380V/3Phase/50HZ
• Application: Construction project
• Working duty: A5
• Travelling speed: 5-20m/min
• Hoisting speed: 0.6/4.0m/min-1.6/10m/min
• Brake: Double-disk electromagnetic brake
• Control model: Handle operation remote control
• Note: Dongqi accept customized European electric hoist according to your demands.

European Wire Rope Electric Hoist Structure Features:

• Motor: Motors are equipped which has safety limiter in both up and down directions. And the motor is Conic rotor brake motor, in order to adapt to the frequent direct start in the intermittent work. Motors imported from Germany, insulation class F, protection class IP55.
• Reducers: Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long life and high mechanical efficiency.
• Main electric parts: Adopts Siemens brand.
• Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
• Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thickened and dilated, so that it is not easy to be damaged.
• Hook: The hook is closed type with high safety, it wrought with special high quality steel.
• Rope drum: It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central part of hoist.

5 ton European Electric Wire Rope Hoist Advantages:

• Walking frequency conversion control, small impact.
• Compact limiting size, compact structure, small blind spot.
• Low headroom designed, save factory space.
• Accurate lifting steady operation.

European Electric Wire Rope Hoist Application:

Dongqi European wire rope hoist for sale can travel through the trolley hanging on the I-steel, and can be installed on all kinds of crane to lift or down the loads such as gantry crane, overhead crane and jib crane. Also can be used in factories, mines, wharf, warehouse, freight yards, and shops and so on.

Why Choose Dongqi European Electric Hoist:

High efficiency and make the most of space:

• Dongqi European FEM hoists adopt advanced technology design, guarantees the limit size of product optimization.
• Compact structure offers excellent performance.
• In the same factory building and work environment, Dongqi European wire rope electric hoist can cover a greater area and reduce the blind area, thus saving investment, increasing profit and lowering cost for the customers.

Accurate orientation, highly-efficient operation, improved logistics efficiency:

• High-quality hoist drive guarantee safe, stable and highly-efficient operation.
• Compact structure design minimizes lift-Hook deflection, Dual speed for hoisting (Frequency conversion Optional).
• All crane trolleys are standard frequency conversion configuration which guarantees highly-efficient operation of cranes and improvement of logistics efficiency in the workshop, and assures that everything asked for by the customers can be carried out as scheduled.

Safe and reliable, monitored operation, easy maintenance:

• Dongqi Cranes can provide carious protection functions, assuring safe and reliable operation of the crane.
• The operation monitoring unit can make a detailed record of the operation of electric hoist, operating status of motor and calculations of safe work cycle, as well as give warnings.
• All the records can be used for maintenance and solving the problems, which will make maintenance ans service plan of the crane more timely and reasonable.

Modularized design, lower maintenance cost. Perfect spare parts and components services:

• Modular design concept has been incorporated into entire product design to ensure standardization and interchangeability of components.
• Dongqi has professional service team and complete inventories of spare parts for all products, to improve product quality and reduce maintenance cost,.
• Ensure timely service and spares customers from worry after purchase of equipment.

Get Dongqi European Electric Hoist Price Now:

As a professional and leading manufacturer & supplier of electric hoists in China, Dongqi can also provide customized service to offer you most suitable design and best solution, please confirm following information when you send inquiry.

• Lifting capacity.
• Lifting height: (Hook center to ground)
• Power supply: Voltage.
• Working condition: What materials to be lifted?
• Any special request.
