Manual Crane: 2 Ton Fixed Height Small Gantry Crane for Greece

Assembly is quick and easy, fixed height gantry cranes provide an economical way and most flexible lifting solution to lift materials anywhere in a facility. Purchase a portable gantry crane and get the job done efficiently and economically without permanently changing your facility.

Manual gantry crane for sale to Greece:

• Type: Hand pushed portable gantry crane
• Lifting capacity: 2 ton
• Lifting height: 4m
• Span: 4m
• Hoist: Motorized trolley electric chain hoist
• Lifting speed: 6.6m/min
• Traveling speed: 11m/min
• Power supply: 380V/50Hz/3 Phase

Why choose fixed height gantry crane?

• Fixed height gantry cranes provide an economical way to lift materials anywhere in your facility.

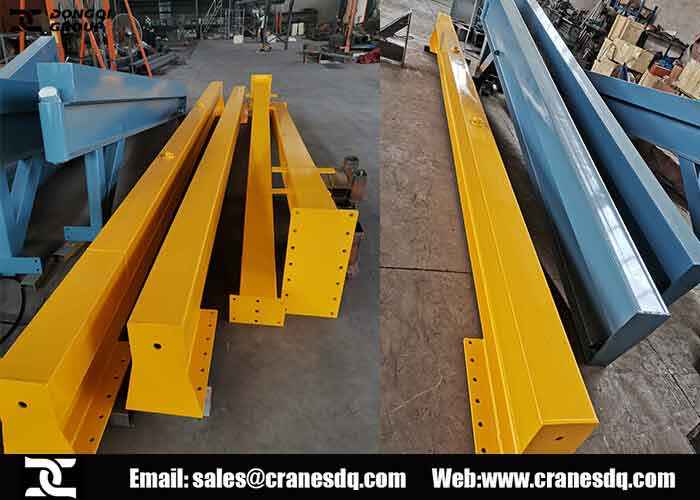

• Our fixed height gantry cranes utilize a heavy duty steel end frame design coupled with square tubing uprights, knee braces and channel base to provide stable lifting and movement.
• The casters are four-position, swivel lock casters with polyurethane wheels to protect your building floors from damage.

Technical standards of portable gantry crane:

• Fixed height and span, easy to install and disassemble. Hand-pushed moving, equipped with universal casters with braking device.
• Precision parts and welding components are aligned and installed, simple operation and stable performance.
• The gantry crane adopts national standard profiles, and the steel plate is laser cut with smooth cuts.
• Fully detachable design, convenient transportation, simple installation, flange butt joint, 8.8 high-strength bolt connection.
• Painted twice, the primer is an anti-rust primer, and the surface layer is a car paint. The paint has good appearance and decoration and acid resistance, and the hardness of the paint is increased and it is not easy to be scratched.
• The gantry crane adopts polyurethane material casters, and other materials can also be used according to customer requirements, so the application scenarios are more extensive.
• The power supply of the gantry crane can be a cable drum or a cable reel, and the power supply of the hoist can be a wire support + high-quality power cord or a C-shaped rail + flat cable.

Safety devices for gantry crane:

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices but also other equipments as following:

• Overload Limit Switch.
• Rubber Buffers.
• Electric Protective Devices.
• Emergency Stop System.
• Voltage Lower Protection Function.
• Current Overload Protection System.
• Rail Anchoring.
• Lifting Height Limit Device.

More choices for small gantry cranes:

• Portable gantries are available in light weight aluminum that is easy to disassemble and move from one jobsite to another as well as the standard steel type.
• Both steel and aluminum are available as either fixed height or adjustable gantry crane.
• Chain fall hoists, electric chain hoists, and wire rope hoists are the most common lifting devices for this type of gantry crane.
