10 Ton European Electric Hoist Double Girder Overhead Crane for Sale

23 Jan, 2019

10 Ton Double Girder overhead crane for Sale


Dongqi is one of the professional European double girder overhead crane manufacturers and suppliers. Dongqi double girder overhead crane 10 ton mainly consists of strong bridge beams, crane traveling mechanism, Electric Winch trolley and electric system and could be classified into several working duties, e.g according to the working frequency and pure working time. 10 ton overhead crane is computer optimized for high performance and low weight, benefits that pay in terms of strength and cost efficiency.

10 ton overhead crane double girder for sale-1

Features of double girder crane for Sale:

  • The whole machines would be guaranteed for one year from the test run date.
  • Low charge for continue maintenance when warranty is expired.
  • Capacity: according to your requirements 1T--100T.
  • Lifting height:according to your request.
  • Span: according to your requirements, engineer can design for you.
  • Three kinds of method for entering the platform of cabin (side, end and top).
  • The cabin can be installed at the left side and also the right side.
  • Safe slider wire or angle iron can be used for electric conduction of the crane. It can be either at the opposite side of the cab or at the same side of the cabin.
  • Operation of crane shall be finished in cabin completely.

Parameters of 10 Ton Double Girder Overhead Crane:

  • Capacity: 10t
  • Span: 10.5-31.5m
  • Lifting height: 12-20m
  • Working duty: A3-A8
  • Lifting speed: 5.3m/min
  • Trolley traveling speed: 20m/min
  • Crane traveling speed: 32m/min
  • Power supply: 380V, 50HZ, 3phase as your required

10 Ton european electric hoist Double Girder Overhead Crane:

  • Dongqi double girder crane with two girder beams that make up the bridge and supported by an end truck on each side. In most instances, the trolley and hoist run on a rail installed on top of the bridge girders. With a double girder design, you gain the depth of the cross girder if the hoist is placed between or on top of the cross girders—providing an extra 18”-36” of hook height in most cases.
  • Double girder cranes can be either top running or under running in design. A top running double girder bridge crane will provide the most overhead room, as well as the greatest hook height.
  • Double girder cranes are recommended for heavy-duty applications where the crane has to handle heavier capacities and longer spans. Because of this, the components of the overhead crane system, including the hoist and trolley, are more complex in design—making double girder cranes more expensive than a single girder crane.
  • Specialized features like walkways and maintenance platforms can be added and supported by a double girder design. European electric hoist double girder crane also require more material for the bridge beams and the runway system, so extra consideration should be given to the building’s support structure. Additional tie-backs or support columns may need to be added to handle the additional deadweight on the supports or building foundation.
  • Double girder bridge cranes are ideal for lifting heavy loads and can be used in more frequent operation than a single girder crane. Dongqi overhead crane can also be used both indoors and outdoors, in a bridge or gantry setup, and are frequently used in mining, iron and steel production, railyards, and shipping ports.

Advantages of Dongqi 10 Ton Overhead Crane:

  • Greater hook height – how far above the floor the hoist will lift (typically 18-36” more than single girder).
  • No limits to maximum span or capacity.
  • Ideal for production and transportation of heavy equipment.
  • Ideal for frequent lifting of heavy loads.
  • Added features like walkways and maintenance platforms, cabs, magnetic reels, and lights can be added and supported by a double girder design.
  • Can be used in indoor and outdoor applications, including mining, iron and steel, railyards, and ports.

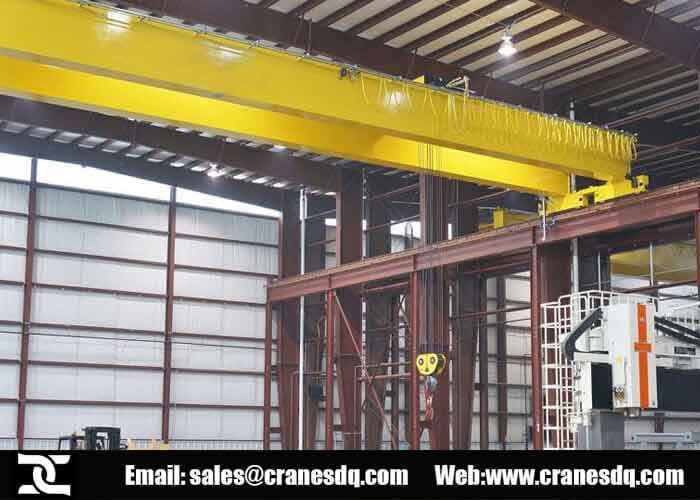

10 ton double girder crane for sale

10 Ton Double Girder Crane for Sale Options:

  • As a leading ovrehead crane manufacturer, Dongqi Cranes can produce single girder and double girder cranes to suit any application in any industry.
  • Dongqi can also incorporate a number of optional extras into the design of your double girder overhead crane to help meet the goals of your application. These include things like remote control access, walkways, floodlights and cabs.
  • All Dongqi double girder overhead cranes are made to order – meaning they can be built to any size and adapted to handle any load.

Inquiry Dongqi Overhead Crane:

On inquiry overhead travelling crane, the following main parameters are needed:

  • types of overhead crane: single girder overhead crane / double girder overhead crane?
  • Overhead crane lifting capacity: Ultimate load lifting capacity= ____tons.
  • Overhead crane span: distance between the railway center = ____ meters.
  • Overhead crane lifting height: height of lifting from the ground to the lift center (Hook) = ____ meters.
  • Overhead crane use/application: ____________________________________
  • Control methods: Remote control / Cabin control /Panel control
  • Frequency = ____.
  • Voltages = ____.

Get Your Custom overhead bridge crane:


Dongqi Cranes manufacture and supply all types of overhead bridge crane configurations including but not limited to a double girder crane or single girder cranes that can be supplied as either top running or under running systems. Our company can also supply you with custom bridge crane to meet the needs of your application.

Call us on WhatsApp: +86 188 3818 4113 or email sales@cranesdq.com to receive a free double girder overhead crane quotation.
